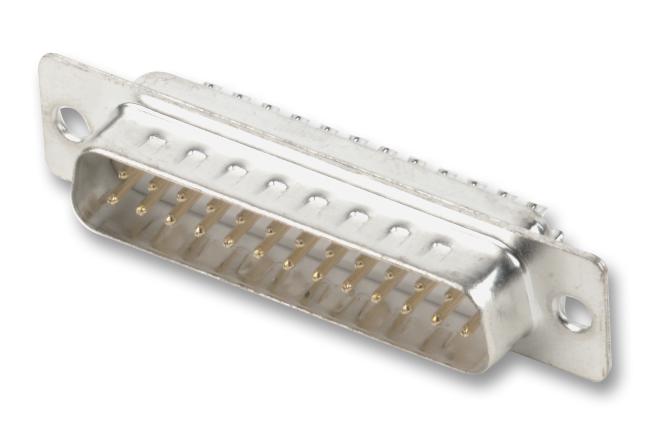

MULTICOMP PRO 550115PA02F1 D Sub Connector
The 5501 series from Multicomp Pro features male and female D Sub Connectors suited for industrial uses, with contact ratings up to 3A and voltage ratings of 250VAC/DC. Operating from -55°C to +105°C, these connectors are crafted from copper alloy contacts with selective gold plating for enhanced conductivity. They come in configurations from 9 to 50 pins, offering low contact resistance of 30 milliohms and high insulation resistance of 5000 megaohms. Designed for reliable electrical connections, they are ideal for automation, control panels, and electronic equipment.
MULTICOMP PRO 550115PA02F1 D Sub Connector Specifications:
- Current Rating: 3A
- Voltage Rating: 250VAC/DC
- Temperature Range: -55°C to +105°C
- Max. Contact Resistance: 30 mΩ
- Min. Insulation Resistance: 5000 MΩ
- Material: Copper Alloy Nickel undercoated, selective gold plated contact
- Insulator: High temperature plastic
- Contact: Copper Alloy
- Finish: Nickel undercoated with gold plating
- Number of Positions: 9, 15, 25, 37, 50
- Dimensions vary with number of contacts, detailed dimensions available per model
Buy the Multicomp 5501 Series D Sub Connectors – Reliable Connection for Industrial Applications
Enhance your electronic and industrial systems with the reliable 5501 series D Sub Connectors from Multicomp Pro. Available in configurations from 9 to 50 pins, these connectors support currents up to 3A and operate at 250VAC/DC. Built with high-quality materials, including copper alloy contacts with gold plating, they ensure excellent electrical conductivity and durability. Suitable for automation, control panels, and electronic equipment, they provide secure, low-resistance connections. Purchase online today to benefit from quick delivery and trusted quality for your critical applications.
Buy Multicomp 5501 series D Sub Connectors now and experience trusted performance in your industrial and electronic projects.
