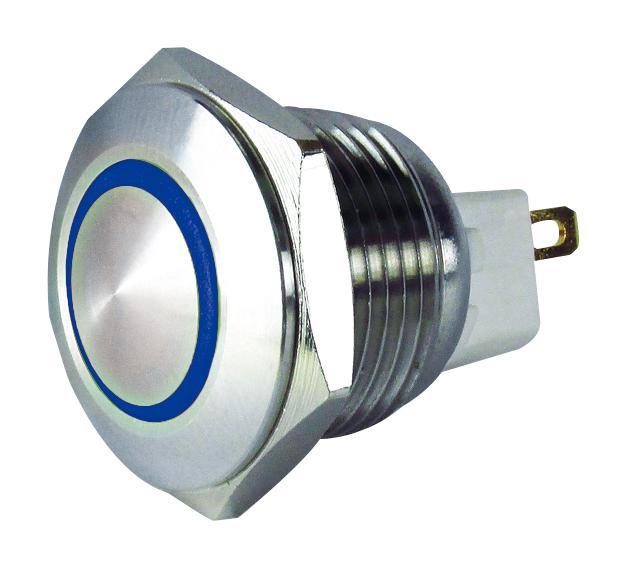

MULTICOMP PRO MC010902 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for harsh environments, featuring a stainless steel finish and UL5OE Type 4X indoor/outdoor protection. It offers a robust contact system with gold-plated contacts, and provides multiple top types including flush, prominent, and domed mount. The switch operates at 48V DC with a current of over 100mA, and includes a green, red, or blue LED indicator working at 12V. It withstands various environmental conditions such as humidity from 45% to 85%, temperature ranges between -30°C and +70°C for storage, and 1°C to 50°C during operation. Built for durability, it has a mechanical life of 1,000,000 cycles and electrical life of 50,000 cycles, with a degree of protection P67 and a solder terminal style, weighing approximately 11 grams.
MULTICOMP PRO MC010902 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: >100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC between live part and ground, 1000V AC between terminals
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. at 500V DC
- Operating Humidity: 45% to 85% RH (no condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to +50°C
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: Damages at 500 m/s², operating at 200 m/s²
- Mechanical Life: 1,000,000 cycles (momentary), 250,000 cycles (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: Approximately 11 grams
Buy the Buy Multicomp Vandal Resistant Switch Part Number MC010902 Online
Discover the durable and reliable vandal resistant switch designed to withstand harsh environments. Featuring stainless steel construction, multiple mounting options, LED indicators, and waterproof P67 protection, this switch is ideal for industrial applications. It offers a robust contact system, high dielectric strength, and long mechanical and electrical life cycles. Whether you need a flush, prominent, or domed top, this switch ensures dependable operation with a sleek design suitable for indoor and outdoor use. Purchase online today for fast delivery.
Order your Multicomp SeriesMC010902 vandal resistant switch today and ensure reliable performance in challenging environments with waterproof protection.
