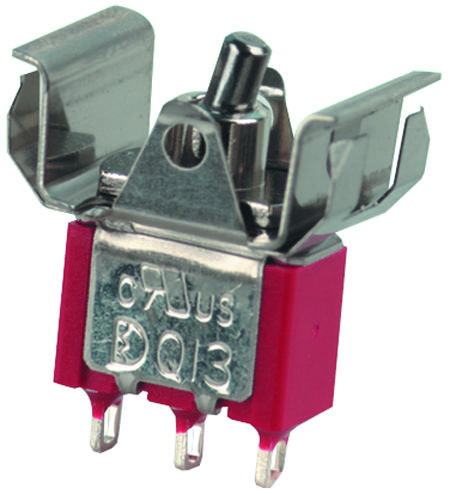

MULTICOMP PRO 7MS7A2000M1QE SPDT Switch Body
This SPDT switch body from the Multicomp Pro series offers reliable switching performance suitable for various electronic applications. Constructed with durable materials including stainless steel housing, brass nickel-plated bushings, and silver or gold-plated contacts, it supports 50,000 make-and-break cycles at full load. The switch features a dielectric strength of 1,000Vrms, an operating temperature range of -30°C to 85°C, and a contact resistance of up to 20mΩ. Its compact design includes specific dimensions and materials, ensuring durability and optimal electrical performance in industrial and electronic systems, making it a trusted component for demanding projects.
MULTICOMP PRO 7MS7A2000M1QE SPDT Switch Body Specifications:
- Electrical Life: 50,000 make-and-break cycles at full load
- Contact Resistance: 20mΩ maximum initial at 2-4V DC, 100mA for both silver and gold plated contacts
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to 85°C
- Materials: Case Dially phthalate (DAP), Plunger Glass filled nylon or polyester, Bushing Brass, nickel plated, Housing Stainless steel, Terminal/Contact Silver or gold plated
- Rating: R: 0.4 Volt-Amps (VA) max at 20V AC/DC, Q: 1 Amp at 250V AC, 3 Amps at 120V AC or 28V DC
- Dimensions: Millimetres (Inches), specific measurements include diameter approximately 12 mm, length approximately 25 mm, epoxy seal about 5.20 mm, thickness 0.76 mm
Buy the Multicomp Pro 7MS7A2000M1QE – Reliable SPDT Switch for Industrial Applications
Enhance your electronic or industrial systems with the reliable SPDT switch from the Multicomp Pro series, featuring durable materials, supporting 50,000 cycles, and a dielectric strength of 1,000Vrms. Designed with stainless steel housing, brass nickel-plated bushings, and silver or gold-plated contacts, it ensures consistent performance in demanding environments. Operating within -30°C to 85°C, this switch is ideal for various industrial and electronic applications. Trust in its robust construction and precise switching capabilities to improve your system’s reliability and efficiency.
Order your Multicomp Pro Series 7MS7A2000M1QE SPDT switch today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 7MS7A2000M1QE?
You can click on the BUY or RFQ button to purchase 7MS7A2000M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 7MS7A2000M1QE?
You can download the 7MS7A2000M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 7MS7A2000M1QE?
MULTICOMP PRO
