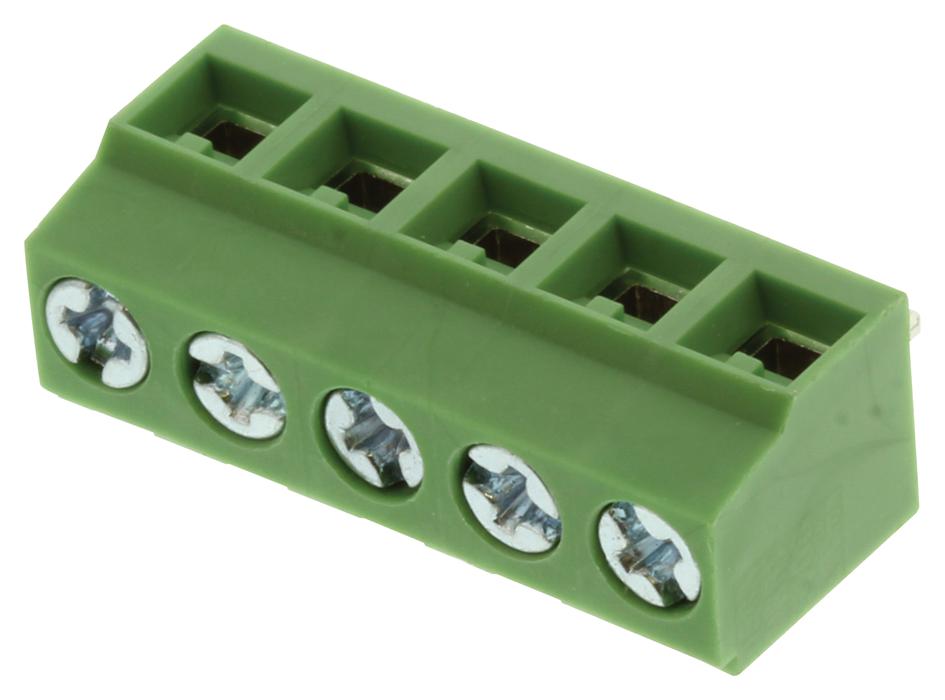

MULTICOMP-PRO MCTB61C05 Eurostyle Terminal Block
The MCTB-61C05 is a 5-way, 16A Eurostyle terminal block with a 5mm pitch, featuring a right-angle through-hole design and screw wire connection. It has a tin-plated brass terminal, a polyamide 66 insulation body, a nickel-plated brass cage clamp, and an M3 nickel-plated steel screw. Rated for 300V AC and 216A, it operates between -40°C and +105°C, ensuring reliable connectivity in industrial applications. Designed for ease of installation, it offers a secure, durable connection suitable for demanding environments.
MULTICOMP-PRO MCTB61C05 Eurostyle Terminal Block Specifications:
- Rated Voltage: 300V AC
- Rated Current: 216A
- Wire Size: 226 to 14 AWG
- Housing Material: Polyamide 66
- Cage Clamp: Brass, Ni plated
- Terminal: Brass, tin plated
- Screw Size: M3, steel, zinc plated
- Operating Temperature: -40°C to +105°C
- Torque: 24.5 Ib-inch
- PCB hole diameter: O1.3mm
- Dimensions (A): 0.394 inches (10mm)
- Dimensions (A): 0.591 inches (15mm)
- Number of Positions: 4 to 12
- Pitch Size: 5mm
- Certifications and compliance: UL Listed, RoHS
Buy the Buy Eurostyle Terminal Block Part Number MCTB-61C05 Online
Order the Eurostyle Terminal Block MCTB-61C05 online today to experience high-quality, reliable electrical connections suitable for industrial and automation projects. This terminal block features a 5mm pitch, 16A current rating, and is built with a durable polyamide 66 housing and brass components. Its screw connection ensures secure wiring, and it can operate in temperatures ranging from -40°C to 105°C. Perfect for professionals seeking durability, easy installation, and compliance with safety standards, purchase now for fast delivery and quality assurance.
Get Eurostyle Terminal Block MCTB-61C05 today—designed for reliable industrial wiring with durable brass and polyamide construction.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTB61C05?
You can click on the BUY or RFQ button to purchase MCTB61C05 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTB61C05?
You can download the MCTB61C05 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTB61C05?
MULTICOMP-PRO
