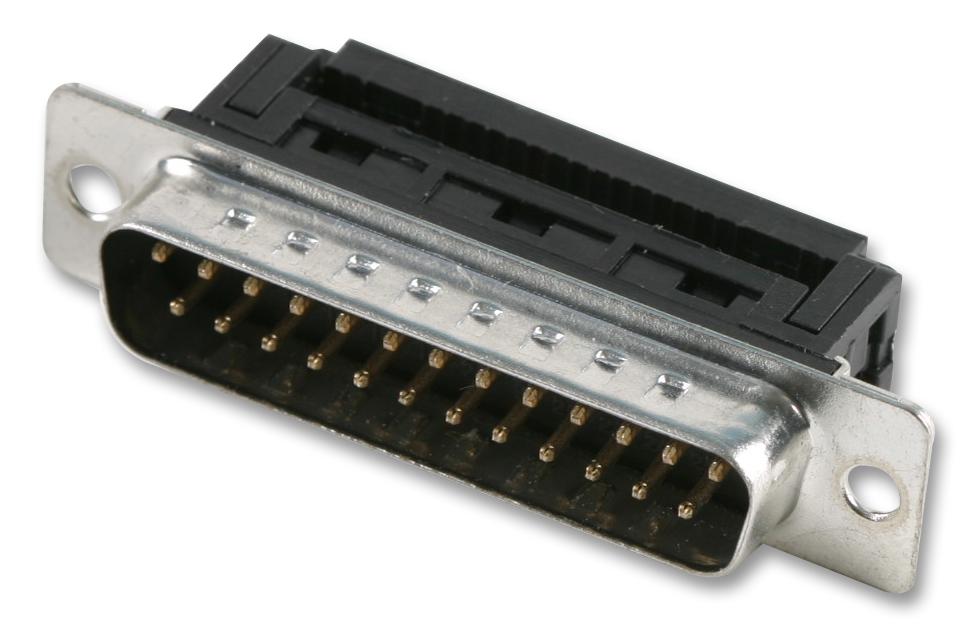

MULTICOMP PRO 8FSM09S30N4FEC D-Sub IDC Receptacle Connector
The MULTICOMP PRO 8FSM09S-30N4-FEC is a D-Sub IDC (Integrated Circuit Dual In-line) receptacle connector, part of the 8F series. It is designed for applications requiring a robust and reliable connection, commonly found in industrial automation, telecommunications, and data acquisition systems. The connector features 9 positions, phosphor bronze contacts with gold plating over nickel for excellent conductivity and corrosion resistance, and a PBT (Polybutylene Terephthalate) insulator reinforced with glass fiber for increased mechanical strength and heat resistance. The gold plating ensures low contact resistance and a long service life. It is compatible with AWG 26 and 28 stranded wire and flat ribbon cable, making it versatile for various wiring configurations. The connector's robust design and reliable performance make it a suitable choice for demanding applications.
MULTICOMP PRO 8FSM09S30N4FEC D-Sub IDC Receptacle Connector Specifications:
- Current Rating: 1 Ampere Min.
- Insulation Resistance: ≥1,000MΩ (at 500V DC) Min.
- Dielectric Withstanding Voltage: 500V AC for one minute
- Operating Temperature: -55°C to 105°C Max.
- Contact Resistance: ≤15mΩ
- Insulator Material: PBT with glass-fibre reinforced
- Colour: Black, blue and grey (optional)
- Contact Material: Phosphor bronze
- Contact Plating: Gold over nickel
- Wire Size: AWG 26 and 28 stranded, 1.27mm conductor centre flat cable
- Number of Positions: 9
- B Dimension: 30.8(1.212)
- Rear Mounting: 20.47(0.806)
- Front Mounting: 22.2(0.874)
Buy the 8FSM09S-30N4-FEC MULTICOMP PRO D-Sub IDC Receptacle Connector | myMectronic
Purchase the MULTICOMP PRO 8FSM09S-30N4-FEC D-Sub IDC Receptacle Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 8FSM09S30N4FEC?
You can click on the BUY or RFQ button to purchase 8FSM09S30N4FEC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 8FSM09S30N4FEC?
You can download the 8FSM09S30N4FEC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 8FSM09S30N4FEC?
MULTICOMP PRO
