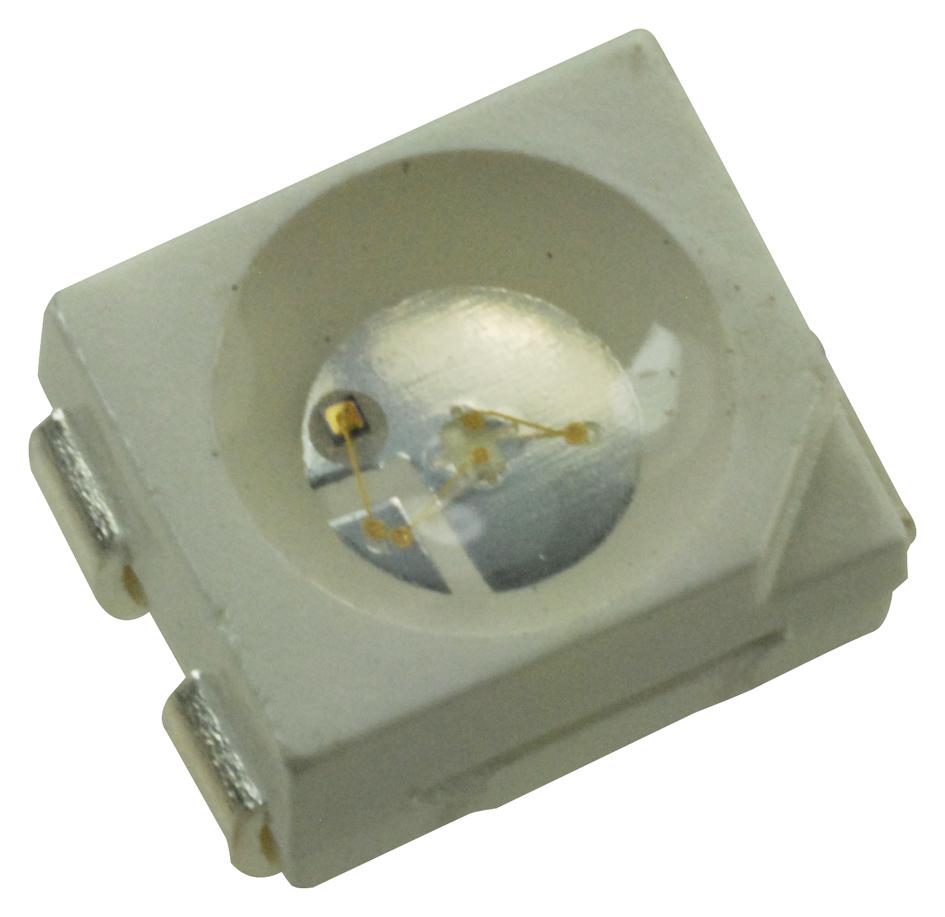

MULTICOMP PRO OVS3003 High Brightness SMD LED
This high-brightness SMD LED features a standard PLCC-4 package, water-clear lens, and a super wide viewing angle of 120 degrees. Designed for reliable optical performance, it operates within -25°C to +85°C and withstands soldering temperatures up to 260°C dip or 350°C hand soldering. The LED uses InGaN/Blue technology, emitting at 465 nm with a brightness of 200 mcd at 20mA and a forward voltage typically around 3.2V. Its rugged construction and high luminous intensity make it ideal for versatile lighting and indication applications in electronics.
MULTICOMP PRO OVS3003 High Brightness SMD LED Specifications:
- Package Type: PLCC-4
- Lens: Water clear
- Viewing Angle: 120 degrees
- Reverse Voltage: 5V at <100µA
- Forward Current: 30mA (DC), 80mA (Pulse with 0.1 ms, 1/10 duty cycle)
- Operating Temperature Range: -25°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Soldering Temperature Dip: 260°C for 5 seconds
- Soldering Temperature Hand: 350°C for 3 seconds
- Wavelength: 465 nm (Blue)
- Luminous Intensity: 200 mcd at 20mA
- Material: Sapphire substrate
- Brightness: 200 mcd
- Material Colors: White Mega
- Max Voltage: approximately 3.2V at 20mA
Buy the Multicomp Pro OVS3003 U+2013 Reliable Blue LED for Industrial Applications
Order the High Brightness SMD LED today from our online store to enjoy fast delivery, competitive pricing, and trusted quality. Perfect for electronic projects requiring reliable indication and lighting with wide viewing angles, excellent luminous intensity, and durable construction. This low voltage LED operates efficiently within specified temperature ranges and can withstand high-temperature soldering processes, making it ideal for manufacturing, indicating, and decorative lighting solutions for various industrial and consumer electronics. Secure your supply now and enhance your electronic designs with this high-performance LED.
Buy Multicomp Pro OVS3003 now and experience unmatched reliability and performance with high brightness and wide viewing angles.
