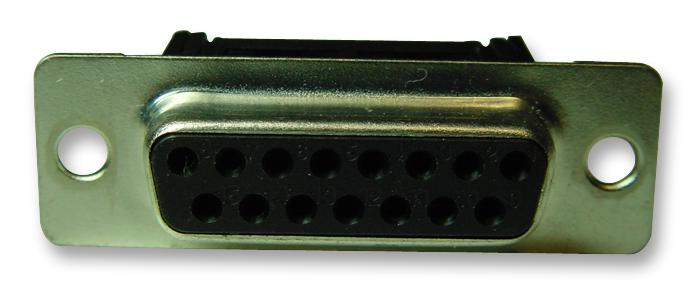

MULTICOMP PRO 8FSM15S30N4FEC D-SUB IDC Connector Receptacle
The MULTICOMP PRO 8FSM15S-30N4-FEC is a D-SUB receptacle connector within the 8F series, specifically designed for IDC (Insulation Displacement Connector) and IDT (Insulation Displacement Termination) applications. It provides a reliable connection for data transmission and power distribution in a variety of electronic devices and systems. The connector's phosphor bronze contacts with gold plating ensure low contact resistance and excellent signal integrity. Its PBT insulator with glass-fibre reinforcement offers durability and dimensional stability. Commonly used in industrial automation, telecommunications equipment, and computer peripherals, this connector delivers dependable performance in demanding environments.
MULTICOMP PRO 8FSM15S30N4FEC D-SUB IDC Connector Receptacle Specifications:
- Current Rating: 1 Ampere Min.
- Insulation Resistance: ≥1,000MΩ (at 500V DC) Min.
- Dielectric Withstanding Voltage: 500V AC for one minute
- Operating Temperature: -55°C to 105°C Max.
- Contact Resistance: ≤15mΩ
- Insulator Material: PBT with glass-fibre reinforced
- Colour: Black, blue and grey (optional)
- Contact Material: Phosphor bronze
- Contact Plating: Gold over nickel
- Wire Size: 26 and 28 stranded AWG, 1.27mm conductor centre flat cable
- Number of Positions: 15
- B Dimension: 39.1(1.539)
- Rear Mounting: 28.8(1.134)
- Front Mounting: 30.53(1.202)
