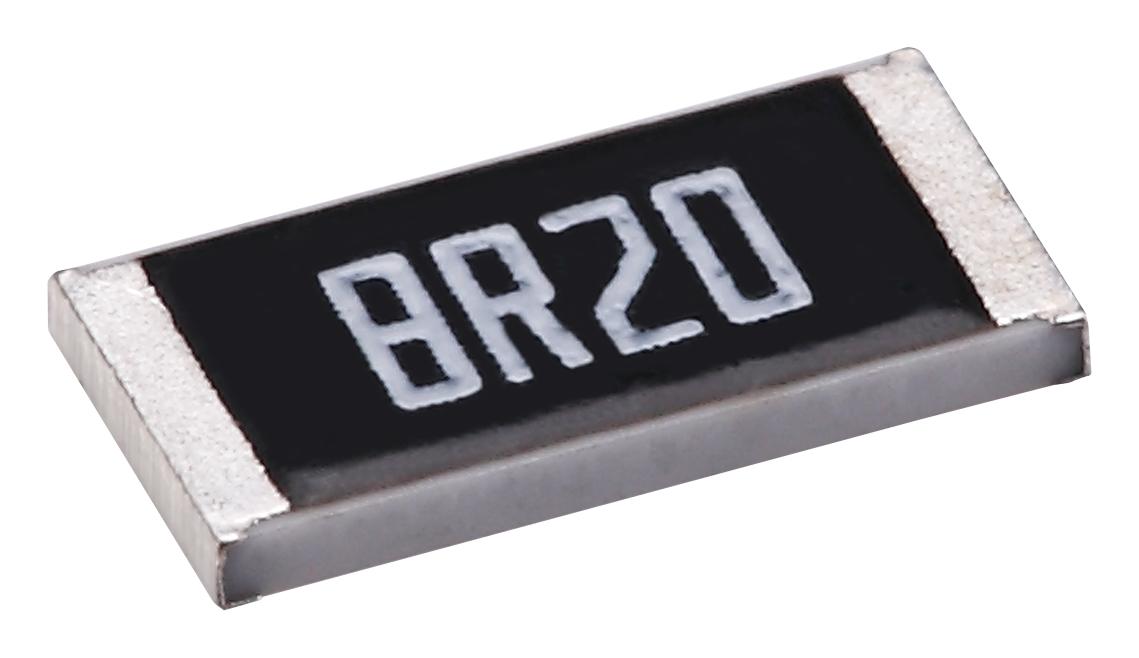

MULTICOMP PRO MC003394 Thin Film Chip Resistor
The product features advanced thin film technology with very tight 0.1% tolerance and low TCR, housed in a miniature 0201 size. Its robust construction includes alumina substrate, top, bottom, and edge electrodes, barrier layer, external electrodes, resistor layer, overcoat, and markings. Designed for high precision applications, it offers excellent environmental characteristics, including durability against overload, temperature cycling, and humidity, supported by RoHS compliance. Its physical dimensions are approximately 0.58 × 0.29 × 0.23 mm, making it ideal for compact electronic circuits requiring high accuracy and stability.
MULTICOMP PRO MC003394 Thin Film Chip Resistor Specifications:
- Size: 0201 (0603)
- Resistance Range: 49.90Ω - 33kΩ
- Tolerance: ±0.1%
- Temperature Coefficient (TCR): #50ppm
- Power Rating: 1/32 W
- Resistance Tolerance: 0.1%
- Resistance Range (typical): 49.90Ω to 33kΩ
- Max Operating Voltage: 15V (standard), 30V (overload)
- Operating Temperature: -55°C to +155°C
- Environmental Resistance: High resistance to overload, humidity, bending, soldering heat
- Dimensions: Length 0.58mm, width 0.29mm, thickness 0.23mm
- RoHS Compliant
- Construction: Alumina substrate with multiple electrodes and resistor layer
- Reliability: Endurance >7kΩ AR+0.5% at +70°C for 1000hrs
Buy the Multicomp Series Precision Chip Resistor: MC003394
Order the Multicomp MC003394 thin film precision chip resistor online today for high accuracy in tight spaces. With 0.1% tolerance and low TCR, it ensures excellent stability and reliability. Perfect for precision electronic circuits requiring stable resistance, this RoHS-compliant component guarantees durability under various environmental conditions. Its small size allows seamless integration into miniaturized assemblies while maintaining high performance. Buy online now for fast delivery, ensuring your projects stay on schedule with reliable, high-quality resistors designed for professional electronics applications.
Get Multicomp MC003394 today—built for precision and long-lasting durability in compact electronic designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC003394?
You can click on the BUY or RFQ button to purchase MC003394 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC003394?
You can download the MC003394 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC003394?
MULTICOMP PRO
