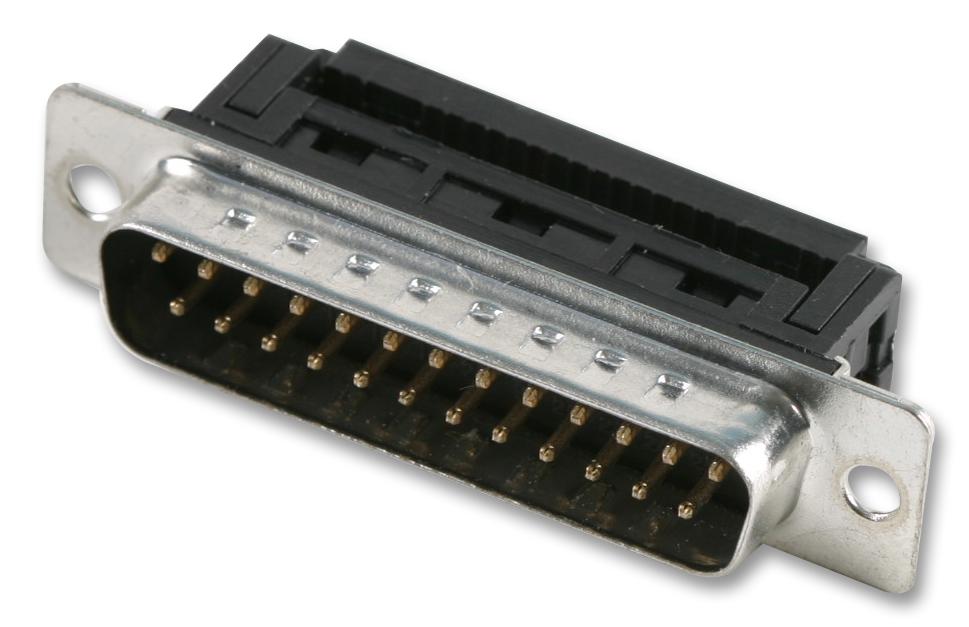

MULTICOMP-PRO 8FSM25P30N1FEC D Sub Connector Plug
The MULTICOMP PRO 8FSM25P-30N1-FEC is a D-sub connector within the 8F series, specifically designed for applications utilizing Insulation Displacement Connector (IDC) and Insulation Displacement Termination (IDT) techniques. This connector provides a secure and reliable connection for 25 contacts, making it suitable for a wide range of industrial applications, including data transmission, power distribution, and control systems. The robust design and gold-plated contacts ensure excellent signal integrity and durability, while the PBT insulator with glass-fibre reinforcement enhances the connector's mechanical strength and heat resistance. It is ideal for applications requiring a standard D-sub connector with IDC/IDT capabilities.
MULTICOMP-PRO 8FSM25P30N1FEC D Sub Connector Plug Specifications:
- Current Rating: 1 Ampere Min.
- Insulation Resistance: 1,000MΩ (at 500V DC) Min.
- Dielectric Withstanding Voltage: 500V AC for one minute
- Operating Temperature: -55°C to 105°C Max.
- Contact Resistance: 15mΩ
- Insulator Material: PBT with glass-fibre reinforced
- Contact Material: Brass
- Contact Plating: Gold over nickel
- Wire Size: 26 and 28 stranded, 1.27mm conductor centre flat cable
