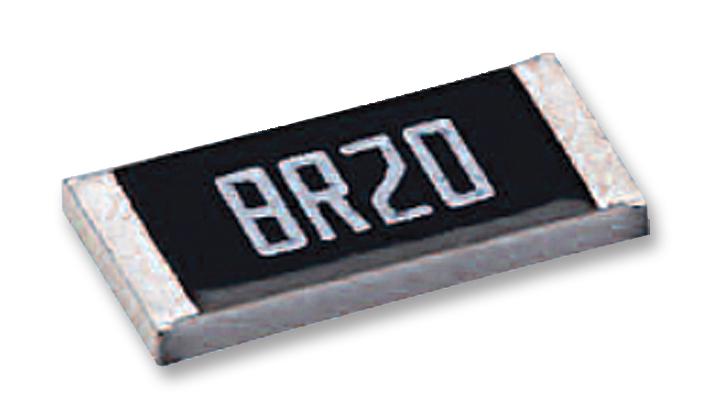

MULTICOMP PRO MP005068 Precision Chip Resistor
These precision thin film chip resistors offer high stability, resistance values from 47 ohms to 240K ohms, and are suitable for automotive, medical, and testing equipment applications. They are RoHS compliant, AEC-Q200 certified, and designed for high sulfur environments, ensuring immunity to humidity and moisture. Available in 0402, 0603, 0805, and 1206 sizes, these resistors feature excellent thermal stability, resistance tolerance of 0.1%, and withstand overvoltage and temperature cycling for reliable performance in demanding conditions, making them ideal for precision electronic circuits.
MULTICOMP PRO MP005068 Precision Chip Resistor Specifications:
- Resistance Range: 47 ohm to 240K ohm
- Resistance Tolerance: 0.1%
- Sizes: 0402, 0603, 0805, 1206
- Power Ratings: 1/16W to 1/2W depending on size
- Temperature Coefficient: 25ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Voltage Rating: 50V to 400V based on size
- Tested for humidity, sulfur, and moisture immunity
- RoHS compliant, AEC-Q200 certified
- Durability against temperature cycling, vibration, and soldering heat
- Designed for automotive, medical, and testing equipment
Buy the Buy Multicomp Precision Chip Resistors Part Number MP005068 Online
Order the Multicomp precision chip resistor MP005068 online today and ensure your electronic circuits operate with high stability and durability. These resistors feature Resistance values from 47 ohms to 240K ohms, 0.1% tolerance, and excellent thermal stability, making them ideal for automotive, medical, and measurement equipment applications. RoHS compliance and sulfur immunity guarantee performance in demanding environments. With sizes including 0402, 0603, 0805, and 1206, they provide flexible integration for your designs, ensuring precision and long-lasting reliability in critical electronic systems.
Buy Multicomp MP005068 now and experience unmatched reliability and performance in high-stability precision resistors.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005068?
You can click on the BUY or RFQ button to purchase MP005068 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005068?
You can download the MP005068 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005068?
MULTICOMP PRO
