MULTICOMP-PRO 8FSM37P30N1FEC Datasheet & Stock

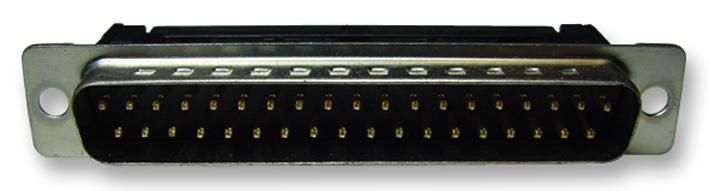

The 8FSM37P-30N1-FEC is a 37-way, 1A metal unthreaded IDC D-subminiature plug with gold-over-nickel plated brass contacts. This male connector features a plastic through-hole housing and a PBT plus glass-fiber reinforced insulator. It is compatible with 28 and 26 AWG stranded wires, suitable for 1.27 mm conductor center flat cable. The connector offers maximum contact resistance of 15 milliohms, minimum insulation resistance of 1000 megohms, and can withstand a dielectric voltage of at least 500 VAC for one minute. Operating temperature ranges from -55°C to 105°C. Multicomp Pro products rated 4.6 out of 5 stars, backed by a 12-month limited warranty. 96% of customers would recommend it to a friend.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 8FSM37P30N1FEC?
You can click on the BUY or RFQ button to purchase 8FSM37P30N1FEC from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 8FSM37P30N1FEC?
You can download the 8FSM37P30N1FEC datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 8FSM37P30N1FEC?
MULTICOMP-PRO
