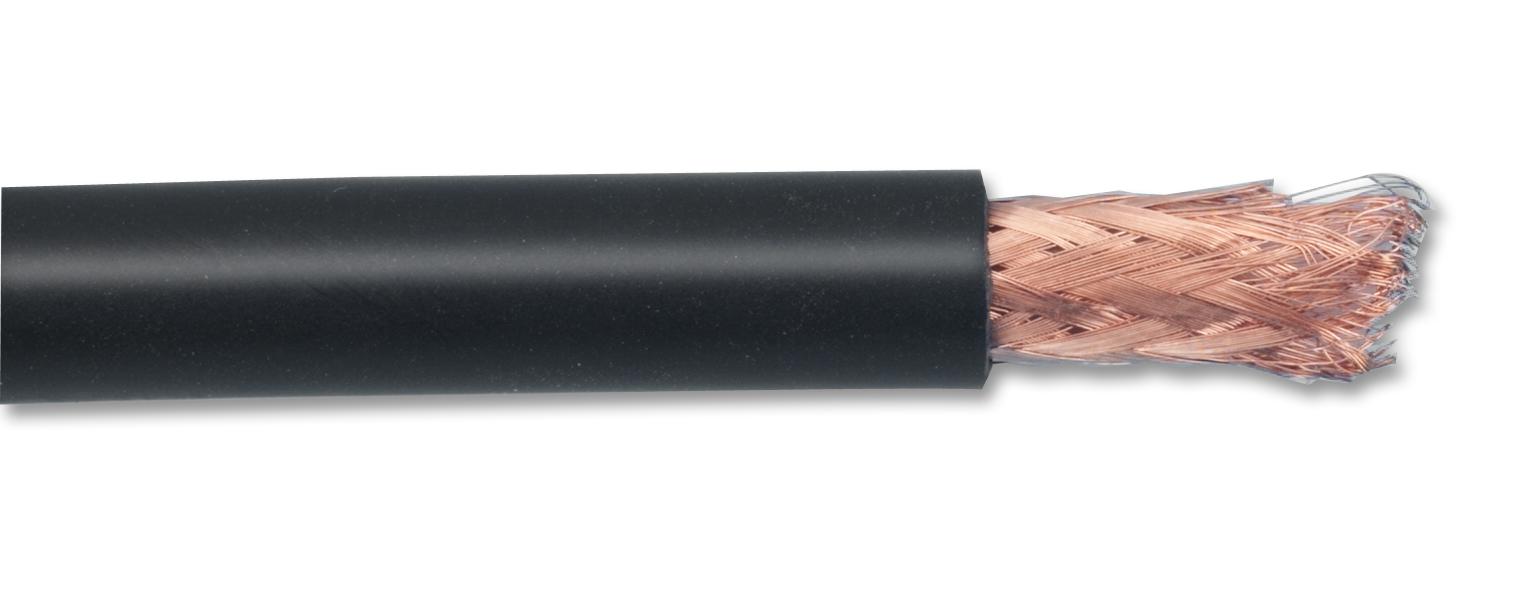

MULTICOMP PRO CBBR0443 RG213AU Coaxial Cable
The MULTICOMP PRO CBBR0443 is a high-quality RG213AU coaxial cable, engineered for robust signal transmission in diverse applications. It boasts a solid polyethylene dielectric, LDPE insulation, and a tinned copper wire braided shield providing 94% coverage. The cable's construction ensures low signal loss and excellent shielding properties, making it suitable for use in telecommunications, broadcast systems, and other RF applications. Its 50Ω impedance and robust design guarantee reliable performance in demanding environments.
MULTICOMP PRO CBBR0443 RG213AU Coaxial Cable Specifications:
- Rated Temperature: 80°C
- Conductor Resistance at 20°C: 5.8Ω/km maximum
- Dielectric Strength: 10 KV / minute
- Capacitance Between Conductor and Braiding: 101 pF / m
- Attenuation Frequency 50MHz: 4.5 dB / 100m
- Attenuation Frequency 100MHz: 6.4 dB / 100m
- Attenuation Frequency 200MHz: 9.5 dB / 100m
- Attenuation Frequency 500MHz: 16 dB / 100m
- Attenuation Frequency 800MHz: 21.2 dB / 100m
- Nominal Outside Diameter: 10.3 ±0.15 mm
- Impedance at 10 MHz: 50 ±4 Ω
- Reel Length: 100 m
- Sheath Colour: Black
- Stranded Bare Annealed Copper Conductor Construction: 7 / 0.75mm
- Insulation Stranded Diameter: 2.29mm
- Insulation Material: LDPE
- Insulation Thickness: ~2.45mm
- Insulation Diameter: 7.24 ±0.18mm
- Bare Copper Wire Braiding Construction: 24 / 12 / 0.12mm
- Braiding Coverage: 94%
