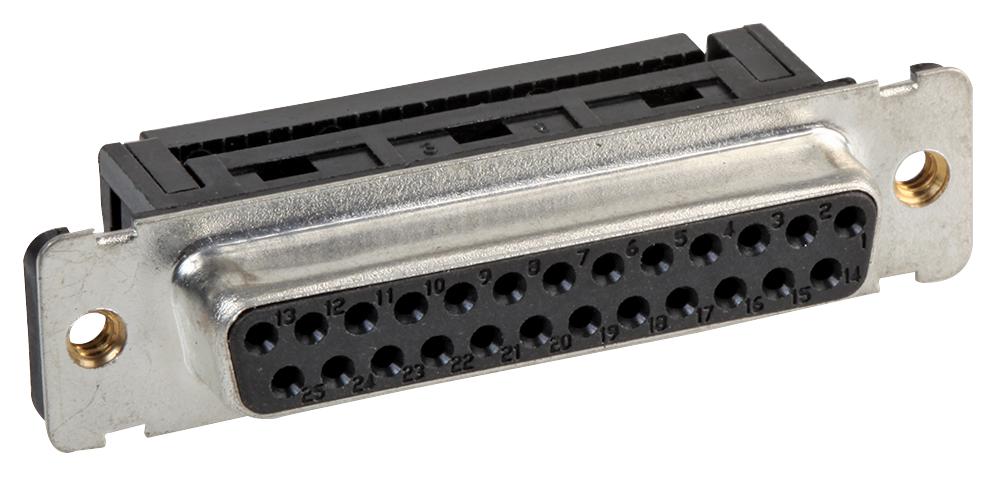

MULTICOMP PRO 8FTM25S30N4FEC D-Sub IDC Connector Housing
The MULTICOMP PRO 8FTM25S-30N4-FEC is a metal D-Type IDC connector housing, part of the 8F series. It is designed for applications requiring a robust and reliable connection, commonly found in industrial control systems, data communication equipment, and networking devices. The connector utilizes phosphor bronze contacts with gold over nickel plating for excellent conductivity and corrosion resistance. It supports AWG 26 and 28 stranded wire and 1.27mm conductor center flat cable. The housing is available in black, blue, and grey color options (optional).
MULTICOMP PRO 8FTM25S30N4FEC D-Sub IDC Connector Housing Specifications:
- Current Rating: 1 ampere
- Min. Insulation Resistance: ≥1,000 MΩ (at 500 V dc)
- Dielectric Withstanding Voltage: 500V AC (for one minute)
- Operating Temperature: -55°C to +105°C
- Contact Resistance: ≤15mΩ
- Dielectric Material: PBT with glass-fibre reinforced
- Contact Material: Phosphor bronze
- Contact Plating: Gold over nickel
- Wire Size: AWG 26 and 28 stranded, 1.27mm conductor center flat cable
- A Dimension: 24.99 mm
- B Dimension: 30.8 mm
- C Dimension: 11.08 mm
- D Dimension: 8.31 mm
- E Dimension: 16.1 mm
- F Dimension: 18.6 mm
- H Dimension: 16.33 mm
- I Dimension (Rear Mounting): 20.47 mm
- I Dimension (Front Mounting): 22.2 mm
