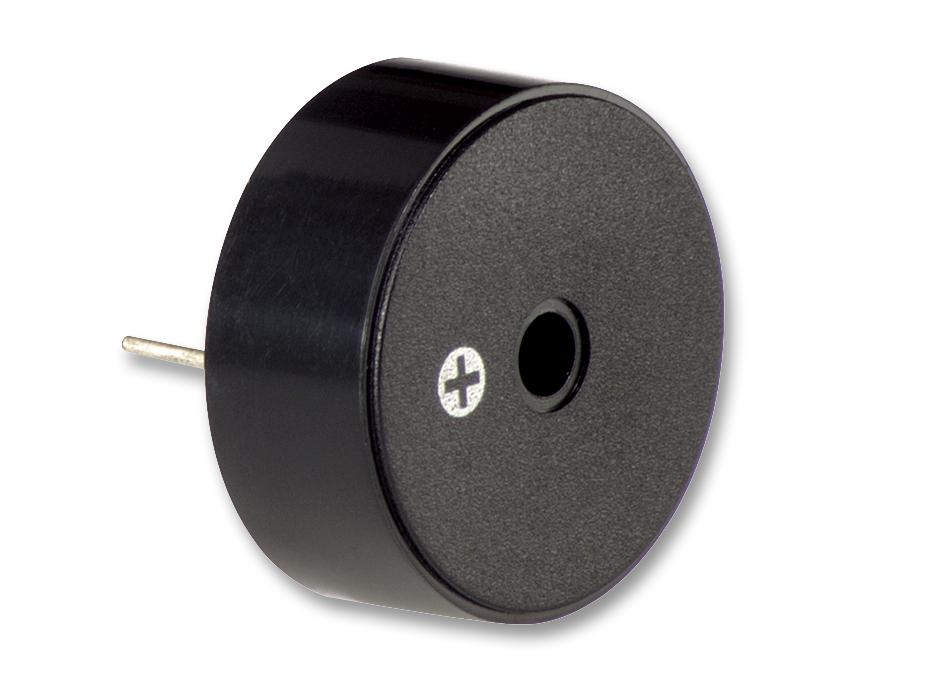

MULTICOMP PRO ABI003RC Piezo Indicator
This self-contained solid-state sounder produces clear audio signals when powered with 12V DC. Encased in a black MPPO housing, it features a piezo element made of brass for reliable sound output. Designed for PCB mounting, it supports wave soldering and withstands environmental stresses through rigorous testing. Operating over 3-20V DC, it emits a sound level of 95dB at 10cm with a resonant frequency of 400+500Hz. Its compact, lightweight (24g) design makes it ideal for industrial alerting and warning systems in diverse environments.
MULTICOMP PRO ABI003RC Piezo Indicator Specifications:
- Rated Voltage: 12V DC
- Operating Voltage: 3-20V DC
- Rated Current: 15mA
- Sound Output: 95dB at 10cm
- Resonant Frequency: 400+500Hz
- Tone: Single
- Housing Material: MPPO (Black)
- Lead Pin Material: Red Copper
- Weight: 24g
- Environmental Test: Storage in high/low temperature and humidity conditions, thermal cycle, vibration, and drop tests
- Soldering Temperature: 260±5°C
- Dimensions: Standard PCB size with epoxy board, brass piezo element
- Certifications: RoHS compliant
Buy the Premier Farnell ABI003RC – Reliable Piezo Indicator for Industrial Applications
Discover the high-performance Piezo Indicator designed for industrial alerting systems. Featuring 95dB sound output, compact construction, and robust materials, this reliable device ensures clear signaling in demanding environments. Its easy PCB mounting and wave solderability make it ideal for integration into various electronic assemblies. Rated for 12V DC operation with a wide voltage range of 3-20V, it withstands environmental stresses through rigorous testing, providing enduring, consistent performance for industrial warning and notification needs.
Buy Premier Farnell ABI003RC now and experience unmatched reliability and performance in industrial signaling devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABI003RC?
You can click on the BUY or RFQ button to purchase ABI003RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABI003RC?
You can download the ABI003RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABI003RC?
MULTICOMP PRO
