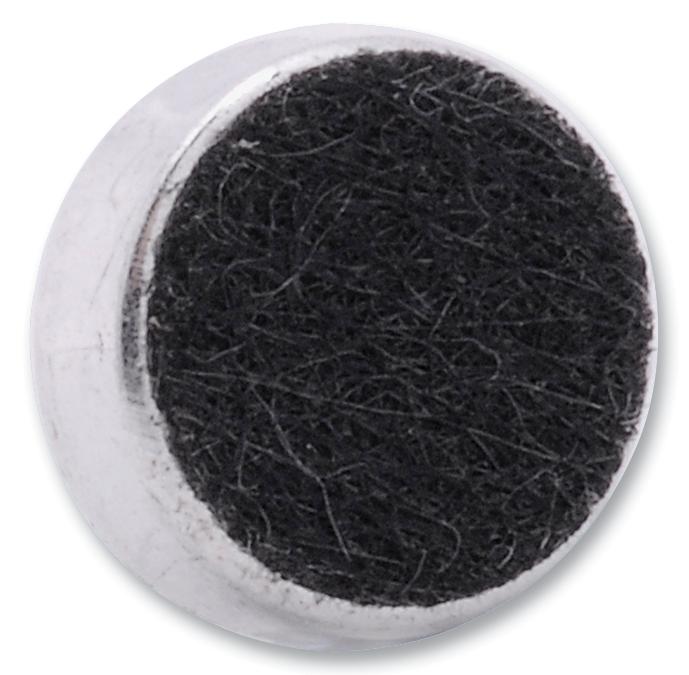

MULTICOMP PRO ABM704RC industrial microphone
The omni-directional microphone ABM-704-RC is ideal for industrial applications, offering a wide frequency response of 50Hz to 16,000Hz and low current consumption of 0.5mA. Its compact external diameter of 6mm and height of 2.2mm make it suitable for space-constrained settings. Operating at a standard voltage of 2V with a maximum of 10V, it provides stable output impedance below 2.2kO at 1kHz. Its high sensitivity of 1-40 +3dB and signal-to-noise ratio of over 60dB ensure clear audio pickup for precise sound detection in industrial environments.
MULTICOMP PRO ABM704RC industrial microphone Specifications:
- Directivity: Omni directional
- Standard Operating Voltage: 2V
- Maximum Operating Voltage: 10V
- Maximum Current Consumption: 0.5mA
- Output Impedance: < 2.2kO at 1kHz 1Pa
- Frequency Range: 50Hz to 16,000Hz
- Sensitivity: 1-40 +3dB at 1kHz, 0dB=1V/Pa
- Signal-to-Noise Ratio: > 60dB weighted at 1kHz 1Pa
- External Diameter: 6mm
- External Height: 2.2mm
Buy the Multicomp ABM704RC – Reliable Microphone for Industrial Applications
Secure your audio detection needs today by purchasing the Multicomp ABM704RC omni-directional microphone online. Designed for industrial applications, it features a wide frequency response from 50Hz to 16,000Hz, providing clear sound pickup in compact form. With a low profile of 6mm diameter and 2.2mm height, it fits into space-constrained setups. Operating at 2V and consuming only 0.5mA, it ensures reliable, energy-efficient performance. Ideal for sound measurement, voice recognition, and monitoring systems.
Buy Multicomp ABM704RC now and experience high-quality sound pickup with low power consumption in your industrial environments.
