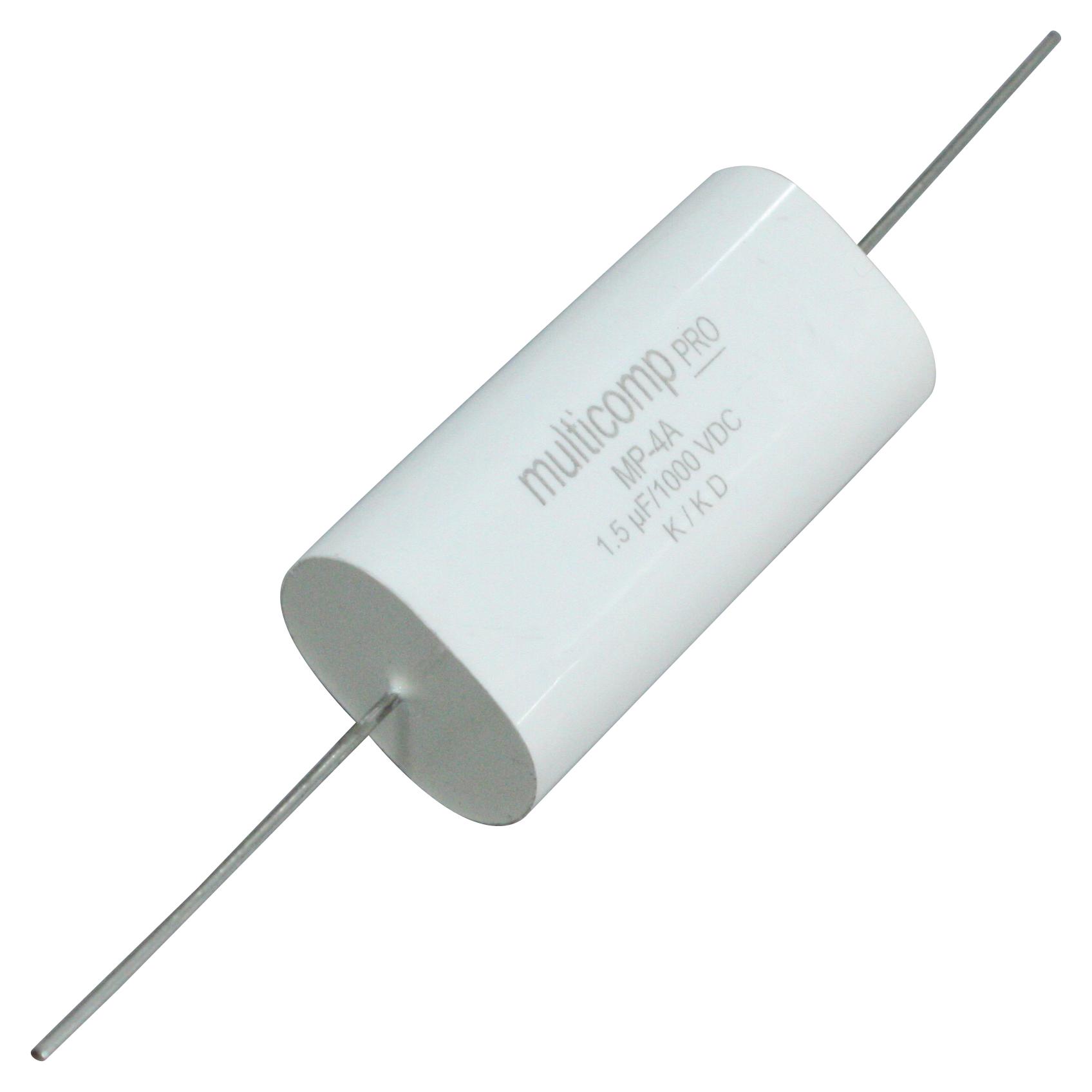

MULTICOMP PRO MP004192 Snubber Capacitor
High-voltage axial leaded snubber capacitor with low-loss polypropylene dielectric, suitable for high-frequency and high-voltage applications. Constructed with extended double metallised polyester electrodes and metallised polypropylene film, it offers high peak current, low ESR, and excellent temperature stability from -55°C to +105°C. Compliant with IEC 61071, flame-retardant UL94-V0, it is ideal for snubber circuits, speed control, and switch mode power supplies. Available in various voltage ratings from 600V to 2000V DC, with capacity ranges from 0.0151 to 51 microfarads, featuring precise dimensions and test voltage specifications.
MULTICOMP PRO MP004192 Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film
- Electrode material: Double metallized polyester and metallised polypropylene film
- Winding construction: Extended double metallised polyester electrodes with metallised polypropylene dielectric internal series connection
- Terminal: Tinned copper
- Enclosure: U I94-VO flame retardant tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151-51 μF
- Capacity tolerance: ±5%(J), ±10%(K)
- Rated voltage: 600V DC, 850V DC, 1000V DC, 1200V DC, 1600V DC, 2000V DC, 2500V DC, 3000V DC
- Test voltage: 2x rated V DC for 10 seconds, 2-3kV AC between terminals
- Dissipation factor: <0.0005 at 1kHz and +25°C
- Insulation resistance: >100,000 MΩ at 100V DC after 2 minutes
- Temperature range: -55°C to +105°C, full rated voltage up to +85°C, half voltage at +105°C
- Dimensions vary by capacitance and voltage, e.g., 0.22 μF size approximately 11.5x18 mm, 1.0 μF size approximately 17.5x27 mm
- Peak current, ESR, and working voltages specified per model
- Compliance: IEC 61071, UL94-V0 flame retardant, RoHS compliant
Buy the Multicomp Series Snubber Capacitors: MP004192
Order the Multicomp MP004192 snubber capacitor online today to ensure high-voltage, high-frequency performance for your power circuits. Designed with polypropylene dielectric and metallised films, it offers low ESR, high peak current capacity, and excellent temperature stability. Suitable for snubber circuits, switch mode power supplies, and motor speed control, this capacitor is RoHS compliant and meets IEC 61071 standards. Secure your supply chain with fast online purchase and enhance your electronic project’s reliability and efficiency today.
Buy Multicomp series MP004192 axial leaded snubber capacitor now and experience unmatched reliability and performance for high-voltage applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004192?
You can click on the BUY or RFQ button to purchase MP004192 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004192?
You can download the MP004192 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004192?
MULTICOMP PRO
