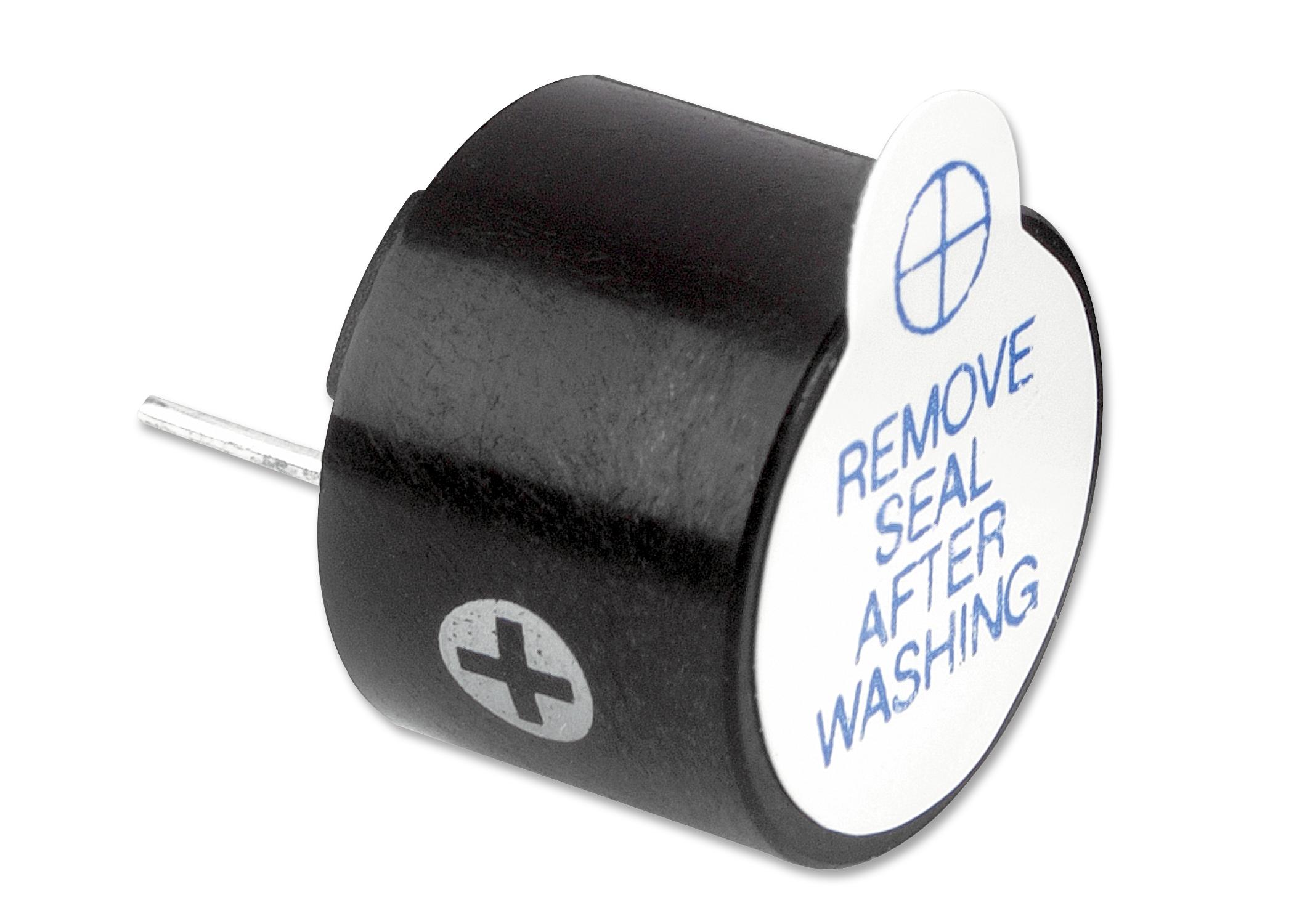

MULTICOMP PRO ABT414RC Audio Transducer
The Pro-Signal 6V electromechanical audio transducer is designed for industrial alert and signaling applications. It operates at a voltage range of 3 to 8 Vp-p with a rated voltage of 6 Vp-p, producing a minimum sound output of 85dB at 10cm. Crafted with a durable Noryl housing, it features a resonant frequency of 24,000Hz and a coil resistance of 145 ± 50 ohms. The device is sealed for protection, weighing approximately 29 grams, and can withstand operating temperatures from 2°C to 70°C, with storage capabilities from -40°C to 85°C. Suitable for use in harsh environments, it supports wave soldering and washing processes.
MULTICOMP PRO ABT414RC Audio Transducer Specifications:
- Rated voltage: 6Vp-p
- Operating voltage: 3 to 8Vp-p
- Rated Current at Rated Voltage: 50mA
- Coil resistance: 145 + 50 ohms
- Resonant Frequency: 24,000Hz
- Sound output at 10cm: ≥85dB + 3dB
- Housing Material: Noryl
- Operating Temperature: 2°C to 70°C
- Storage Temperature: -40°C to 85°C
- Weight: approximately 29 grams
- Wave Solder and Wash: Allowed
Buy the Pro-Signal ABT-414-RC – Reliable Audio Transducer for Industrial Applications
Purchase the Pro-Signal 6V audio transducer online today to ensure reliable signaling in industrial environments. Designed with durable Noryl housing, it features a resonant frequency of 24,000Hz and delivers a sound output of 85dB at 10cm for effective alerts. Its sealed design provides protection against dust and moisture, making it suitable for harsh conditions. Easy to install with wave solder compatibility, this transducer supports a voltage range of 3 to 8V, ensuring long-lasting performance for industrial automation, machinery, and alert systems. Buy now for precision and durability.
Get Pro-Signal ABT-414-RC today—built for robust industrial signaling with high durability and consistent sound output.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABT414RC?
You can click on the BUY or RFQ button to purchase ABT414RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABT414RC?
You can download the ABT414RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABT414RC?
MULTICOMP PRO
