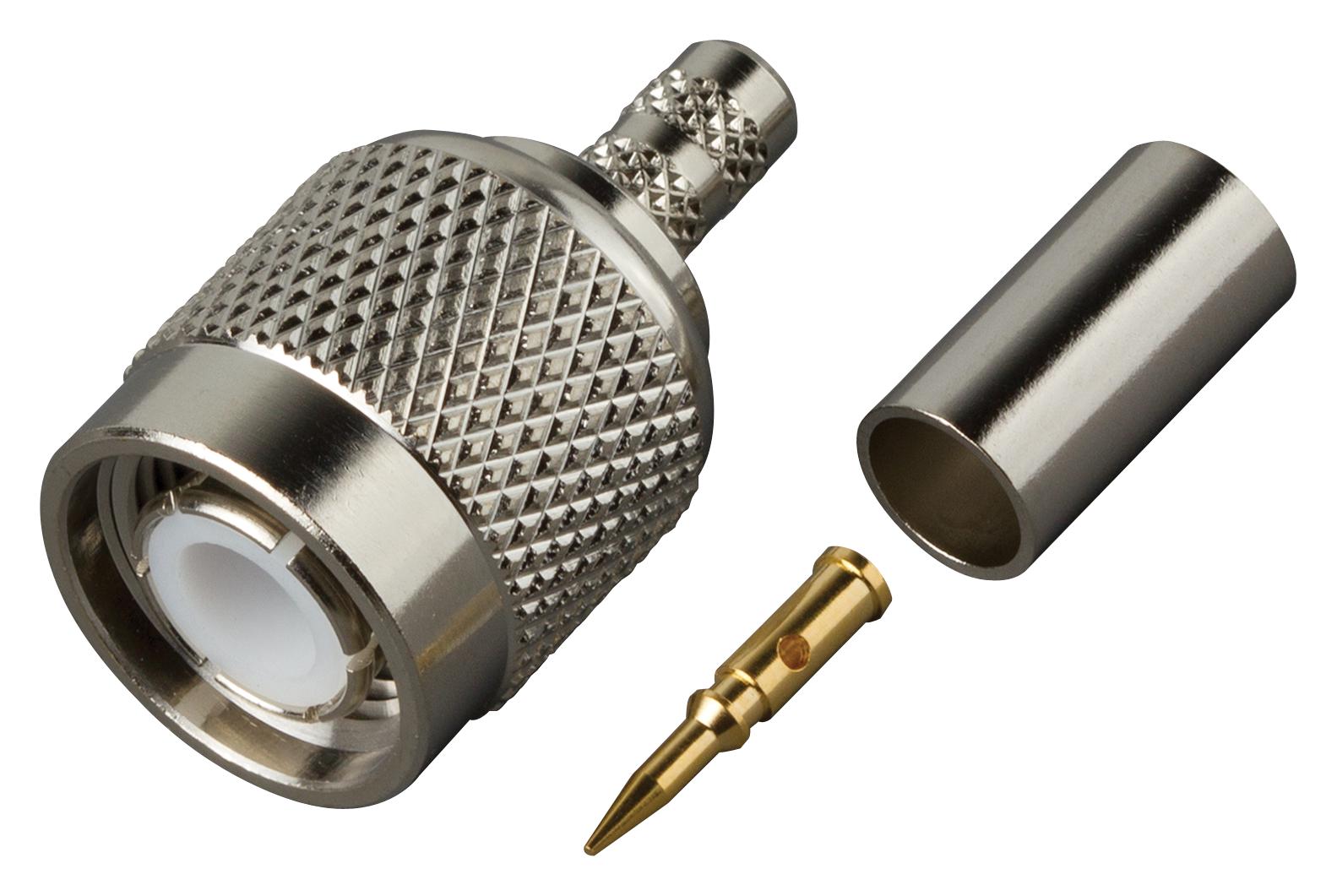

MULTICOMP-PRO MC002044 RF TNC Connector
This TNC Male Crimp connector is designed for reliable RF connections with impedance of 50Ω, suitable for frequencies up to 7 GHz. Made with brass and nickel finish, it features a PTFE dielectric and compatible with RG-58/U and similar cables. It has a working voltage of 500Vrms at sea level and offers low insertion loss of -0.2dB at 3 GHz, with a maximum VSWR of 1.3:1. Connecting via MIL-STD-348A standards, it ensures durable and precise connections in RF and telecommunications applications. Ideal for military, aerospace, and commercial RF systems.
MULTICOMP-PRO MC002044 RF TNC Connector Specifications:
- Impedance: 50Ω
- Working Voltage: 500Vrms at Sea Level
- Frequency Range: 0-7 GHz
- Insertion Loss: -0.2dB @ 3 GHz
- VSWR Max.: 1.3:1 @ 3 GHz
- Body Material: Brass with Nickel finish
- Pin Material: Brass with Gold plating
- Dielectric: PTFE
- Dimensions: Length varies with cable, connector body approximately 25mm
- Compatibility: RG-58/U, 58A, 58C, 141, 141A, 400/U, Belden 8240, 8259, 8262, 9201, 9203, 9310, 9311, Comm/Scope 0268, Cushcraft Ultralink TL92463E
- Standards: MIL-STD-348A, Section 313.1
Buy the Multicomp Series RF Connectors TNC Male Crimp: MC002044
Order the Multicomp MC002044 RF TNC connector online today and benefit from a robust, high-quality connection solution designed for frequency ranges up to 7 GHz. Made with durable brass and nickel finish, it ensures lasting performance in RF, aerospace, and military applications. Featuring a low insertion loss of -0.2dB at 3 GHz and MIL-STD-348A compliance, this connector provides superior signal integrity. Easy to install on RG-58/U cables, it’s your ideal choice for reliable RF system setups.
Buy Multicomp MC002044 now and experience unmatched reliability and high-performance RF connections suitable for demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002044?
You can click on the BUY or RFQ button to purchase MC002044 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002044?
You can download the MC002044 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002044?
MULTICOMP-PRO
