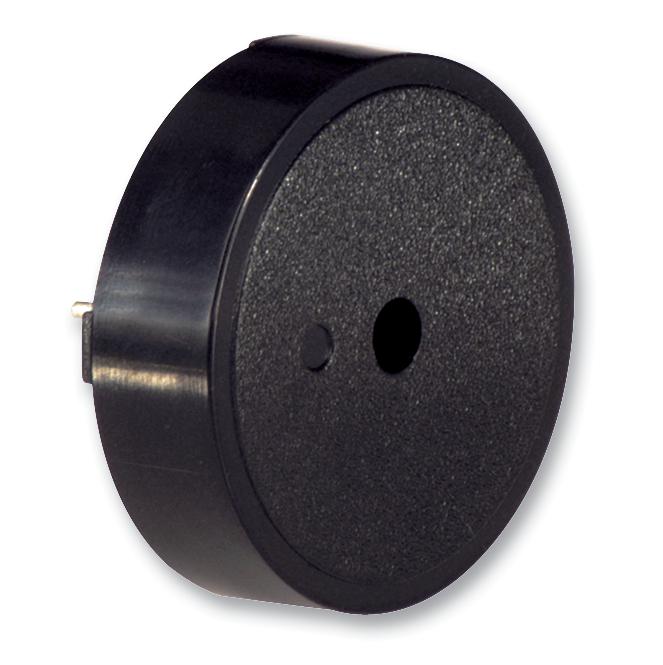

MULTICOMP PRO ABT430RC industrial piezo transducer
This piezo transducer features multiple variants suitable for industrial applications, including panel mount and through hole types. Designed to generate sound with external circuitry, these devices operate at voltages up to 30Vp-p, with resonant frequencies ranging from 2800Hz to 5500Hz. They have a sound output level exceeding 78dB, 80dB, or 90dB depending on the model, and are made from durable materials like black ABS, Noryl, or brass. They are suitable for continuous tone applications and operate within temperature ranges of -20°C to +70°C, with storage limits up to 80°C.
MULTICOMP PRO ABT430RC industrial piezo transducer Specifications:
- Rated Voltage: 15Vp-p (ABT-422-RC), 9Vp-p (ABT-431-RC), 12Vp-p (ABT-438-RC), 5Vp-p (ABT-402-RC), 3Vp-p (ABT-405-RC), 15Vp-p (ABT-430-RC), 10Vp-p (ABT-436-RC), 10Vp-p (ABT-451-RC), 15Vp-p (ABT-440-RC), 10Vp-p (ABT-459-RC)
- Operating Voltage: 1-30Vp-p (all models)
- Rated Current: <8mA (ABT-422-RC), <3mA (ABT-431-RC), 3mA (ABT-438-RC), 1mA (ABT-402-RC, ABT-405-RC), 3mA (ABT-430-RC), 1mA (ABT-436-RC), 3mA (ABT-451-RC), <5mA (ABT-440-RC, ABT-459-RC)
- Sound Output Level: > 90dB @30cm (ABT-422-RC, ABT-438-RC), > 88dB @10cm (ABT-431-RC), > 80dB @10cm (ABT-405-RC), > 85dB @10cm (ABT-430-RC), > 78dB @10cm (ABT-436-RC), > 90dB @10cm (ABT-451-RC), > 80dB @10cm (ABT-459-RC)
- Resonant Frequency: 5500Hz +700Hz (ABT-422-RC), 3500Hz +500Hz (ABT-431-RC), 2800Hz +500Hz (ABT-438-RC), 4000Hz +500Hz (ABT-402-RC, ABT-405-RC, ABT-430-RC), 4000Hz +500Hz (ABT-436-RC), 2800Hz +500Hz (ABT-451-RC), 3200Hz +500Hz (ABT-459-RC)
- Capacitance: 18000pF, 430pF, 20000pF, 35000pF, 13000pF, 10000pF, 17000pF, 15000pF, 11000pF (+30%)
- Housing Material: Black ABS, Black Noryl, Brass
- Operating Temperature: -20°C to +70°C (most models), -20°C to +60°C (some models)
- Storage Temperature: -30°C to +80°C (most models), -30°C to +70°C (some models)
- Lead Wire: UL1571 AWG32, UL1905 AWG28, UL1007 AWG28
- Lead Length: 50mm, 90mm, 120mm, 145mm
- Weight: 1g, 2g, 3.59g, 10g
Buy the Multicomp Piezo Transducer – Reliable Sound Generation for Industrial Applications
Order multicomp piezo transducers online today for reliable sound output in automation, alarms, and control systems. Designed for durability with multiple mounting options and a wide operating temperature range, these transducers suit various industrial environments. Choose from panel mount or through-hole types, with voltages up to 30Vp-p and resonant frequencies from 2800Hz to 5500Hz. Easy to install and ideal for continuous tone operation, they ensure high sound levels at a range of distances for effective signaling in demanding applications. Purchase now for fast delivery and guaranteed quality.
Get multicomp piezo transducer today—built for precise sound output and long-lasting durability in industrial environments.
