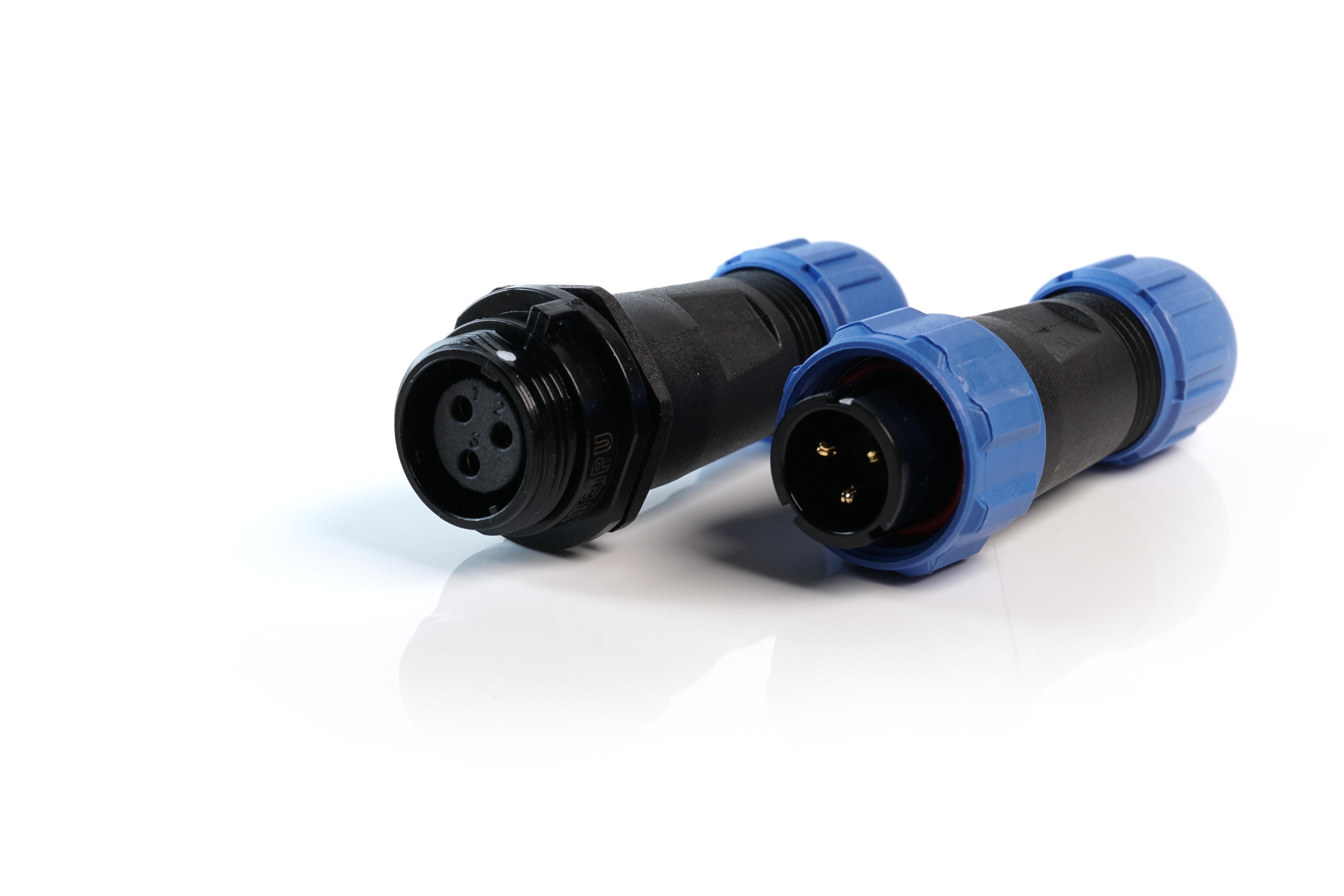

MULTICOMP-PRO MP002531 Weatherproof Connector
The MP-T13 IP68 series is a durable, weatherproof connector range featuring threaded coupling and IP68 sealing. Designed for indoor and outdoor applications, these connectors are available in panel mount, cable mount, and in-line options, fitting a 13mm panel cut-out. They accommodate 2, 3, 4, 5, and 7 poles with solder termination and a threaded mating system for secure connection. An optional IP68-rated dust cap enhances protection. Suitable for automation, industrial control, security, and measurement equipment, these connectors provide reliable performance in harsh environments, with a maximum temperature of 85°C and 500 mating cycles.
MULTICOMP-PRO MP002531 Weatherproof Connector Specifications:
- Material and Specifications Compliant
- Coupling: Threaded
- Shell Material: PC, Brass with gold plating contact
- Insert Material: PPS, Max. Temperature 260°C
- Contact Resistance: 2.5 mΩ
- Rated Current: 13 A for 2 contacts, 5 A for 3-7 contacts
- Rated Voltage: 250 V for 2 contacts, 200-125 V for others
- Ingress Protection: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Solder Termination
- Dimensions: Fits 13mm panel cutout, suitable for cable diameter 4mm to 8mm
- Dust Cap: IP68-rated available for protection in harsh environments
Buy the Buy Multicomp IP68 Connector Part Number MP002531 Online
Purchase the Multicomp Weatherproof Connector MP002531 online today to enjoy dependable IP68 sealing, robust construction, and versatile mounting options. Perfect for automation, industrial control, outdoor surveillance, and measurement systems, this reliable connector ensures secure, weatherproof connections. Its solder termination and threaded coupling provide a durable connection that withstands harsh environments. With multiple pole configurations and an optional protective dust cap, this connector is ideal for demanding applications requiring durability and high performance. Buy now and ensure optimal connectivity in challenging conditions.
Buy Multicomp IP68 connector MP002531 now and experience unmatched reliability and performance in harsh environmental conditions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002531?
You can click on the BUY or RFQ button to purchase MP002531 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002531?
You can download the MP002531 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002531?
MULTICOMP-PRO
