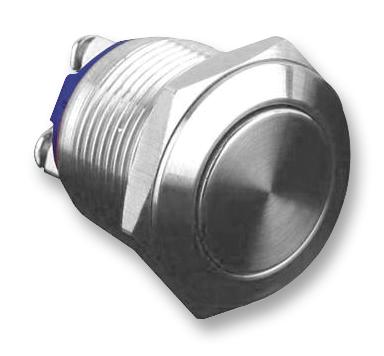

MULTICOMP PRO AV01B22M1FIP65 Vandal Resistant Pushbutton Switch
The MULTICOMP PRO AV01-B22-M1-F-IP65 is a robust vandal-resistant pushbutton switch engineered for demanding industrial environments. Its stainless steel bushing and button construction, combined with a silver alloy contact and nickel-plated brass nut, ensure long-term reliability. The IP65 rating provides protection against dust and water ingress, making it ideal for applications where environmental factors are a concern. The switch offers a 2A at 36V dc rating and a switching circuit of Off-MOM, suitable for various control and signaling applications.
MULTICOMP PRO AV01B22M1FIP65 Vandal Resistant Pushbutton Switch Specifications:
- Contact Rating: 2A at 36V dc
- Electrical Life: 200,000 cycles
- Maximum Contact Resistance: 50m Ω (initial)
- Minimum Insulation Resistance: 1000M Ω at 500V dc
- Dielectric Strength: 2000V rms 50 to 60Hz
- Operating Temperature: -20°C to +55°C
- Switching Circuit: Off-MOM
- IP Class: IP65 protection
- Maximum Torque: 5 to 14Nm
- Maximum Operating Force: 4N
- Bushing and Button Material: Stainless Steel with Varnished Polished
- Contact Material: Silver alloy
- Nut Material: Nickel plated brass
- Base Material: PBT
