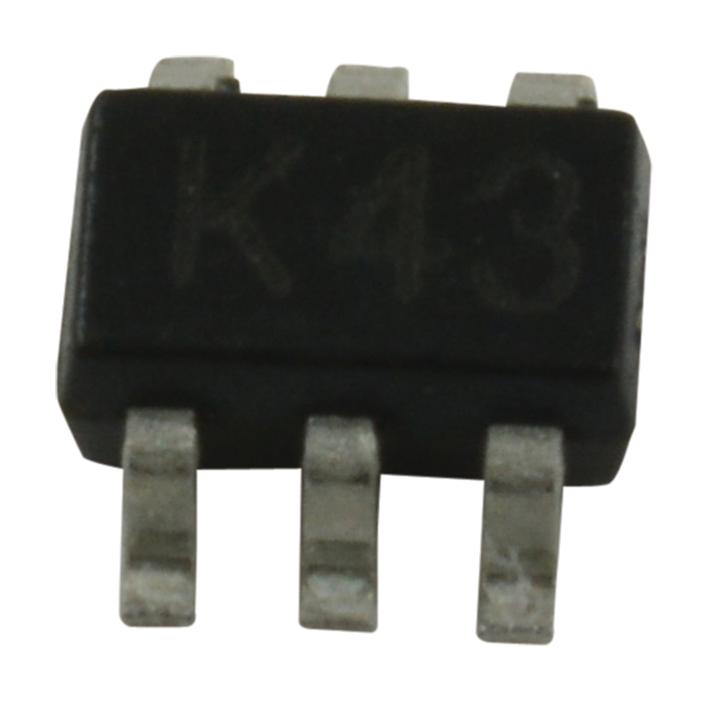

MULTICOMP PRO BAS40TW7F Schottky Diode
The surface mount Schottky barrier diode from Multicomp offers fast switching, low forward voltage, and ultra-small packaging ideal for compact electronic designs. Designed in a plastic SOT-363 package, it supports a maximum reverse voltage of 40V and a forward current of 200mA, ensuring reliable performance in various applications. Its low junction capacitance of 5pF and reverse recovery time of 5ns make it suitable for high-speed switching circuits. The device also features a guard ring for transient and ESD protection, making it durable in demanding environments and ideal for power management and low-voltage circuitry.
MULTICOMP PRO BAS40TW7F Schottky Diode Specifications:
- Maximum Reverse Voltage: 40V
- Forward Voltage Drop: 0.88V
- Reverse Current: 200nA at 30V
- Total Capacitance: 5pF at 0V, 1MHz
- Reverse Recovery Time: 5ns
- Package Type: Surface Mount SOT-363
- Power Dissipation: 200mW
- Operating Temperature Range: -55°C to +150°C
- Junction Guard Ring: Yes
- Dimensions: Length 2.2mm, Width 1.55mm, Height 0.95mm
- Maximum Peak Repetitive Reverse Voltage: 40V
- Working Peak Reverse Voltage: 40V
- DC Reverse Voltage: 40V
- Peak Surge Forward Current: 4A
- Thermal Resistance Junction to Ambient: 625°C/W
Buy the Multicomp BAS40TW7F – Reliable Schottky Diode for Industrial Applications
Purchase the reliable Schottky diode from Multicomp online today. Engineered with a 40V reverse voltage and 200mA forward current, it features fast switching, low forward voltage drop, and a compact SOT-363 package suitable for power management, high-speed switching, and low-voltage applications. Its guard ring provides excellent transient and ESD protection, ensuring durability in demanding environments. Convenient online shopping with quick delivery allows engineers and hobbyists to efficiently incorporate this versatile diode into various electronic projects and circuit designs.
Get Multicomp BAS40TW7F today—built for fast switching, low forward voltage, and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO BAS40TW7F?
You can click on the BUY or RFQ button to purchase BAS40TW7F from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part BAS40TW7F?
You can download the BAS40TW7F datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of BAS40TW7F?
MULTICOMP PRO
