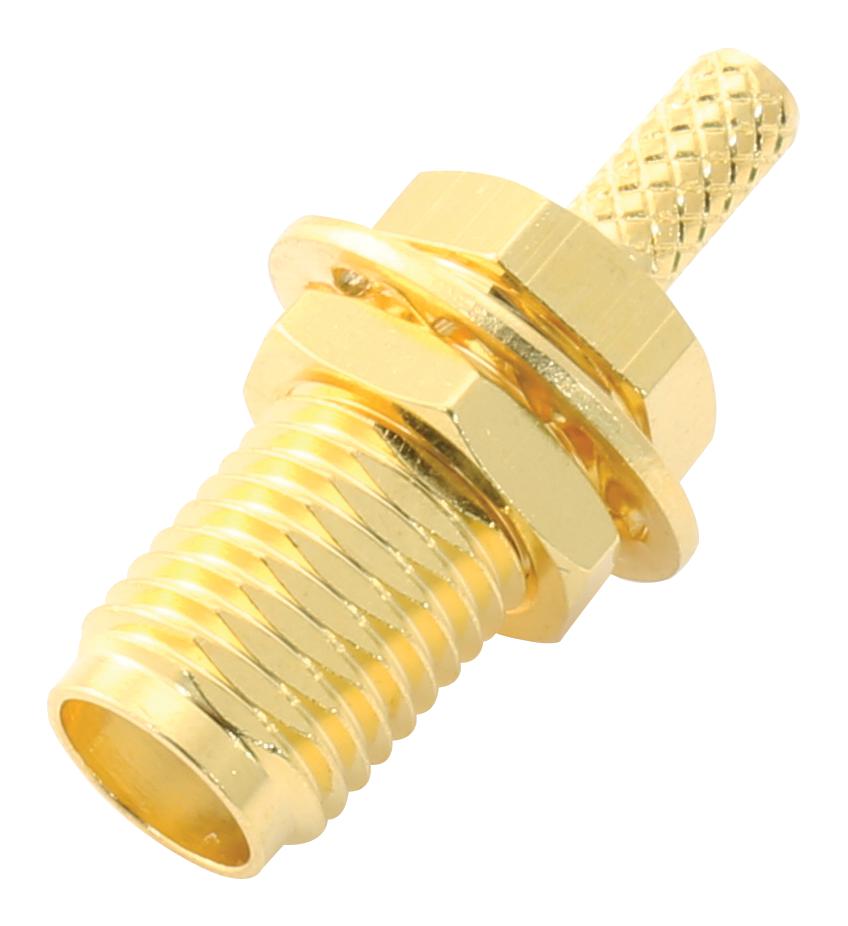

MULTICOMP PRO MC001915 RF Coaxial Connector
The SMA RF/Coaxial Connector multicomperc is a high-performance, precision-engineered coaxial connector designed for RF applications up to 12.4 GHz. Crafted with durable materials including brass and gold plating, it features a straight bulkhead jack configuration with reliable crimp connections. Ideal for high-frequency transmission systems, this connector offers low insertion loss, minimal RF leakage, and excellent electrical performance across a temperature range of -65°C to +165°C. Suitable for use in telecommunications, RF testing, and communication equipment, ensuring optimal signal integrity and longevity.
MULTICOMP PRO MC001915 RF Coaxial Connector Specifications:
- Impedance: 2500
- Frequency: 0-12.4 GHz
- VSWR: 21.15 + 0.02xF (GHz)
- Insertion Loss: 0.05 × F (GHz) dB Max.
- RF Leakage: 0.05 × (GHz) dB Max.
- Voltage Rating: 250 Veff Max.
- Dielectric Withstanding Voltage: 750 Veff Min.
- Insulation Resistance: 5000 MΩ Min.
- Temperature Range: -65°C to +165°C
- Materials: Brass body and nut, PTFE insulator, gold-plated contacts, nickel-plated ferrule
- Connector Type: Straight bulkhead jack
- Plating: Gold and nickel
Buy the Multicomp Series SMA RF Coaxial Connector: MC001915
Enhance your RF transmission setup with this high-quality SMA coaxial connector. Designed for frequencies up to 12.4 GHz, it features durable brass construction, gold plating, and excellent electrical performance. Ideal for telecommunications, RF testing, and communication equipment, this connector ensures low insertion loss, minimal RF leakage, and robust crimp connections. Its wide temperature range of -65°C to +165°C makes it suitable for various environments, providing reliable signal integrity. Purchase online today for fast delivery and seamless integration into your projects.
Buy Multicomp SMA RF Coaxial Connector MC001915 now and experience unmatched reliability and high-frequency performance in your RF and communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001915?
You can click on the BUY or RFQ button to purchase MC001915 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001915?
You can download the MC001915 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001915?
MULTICOMP PRO
