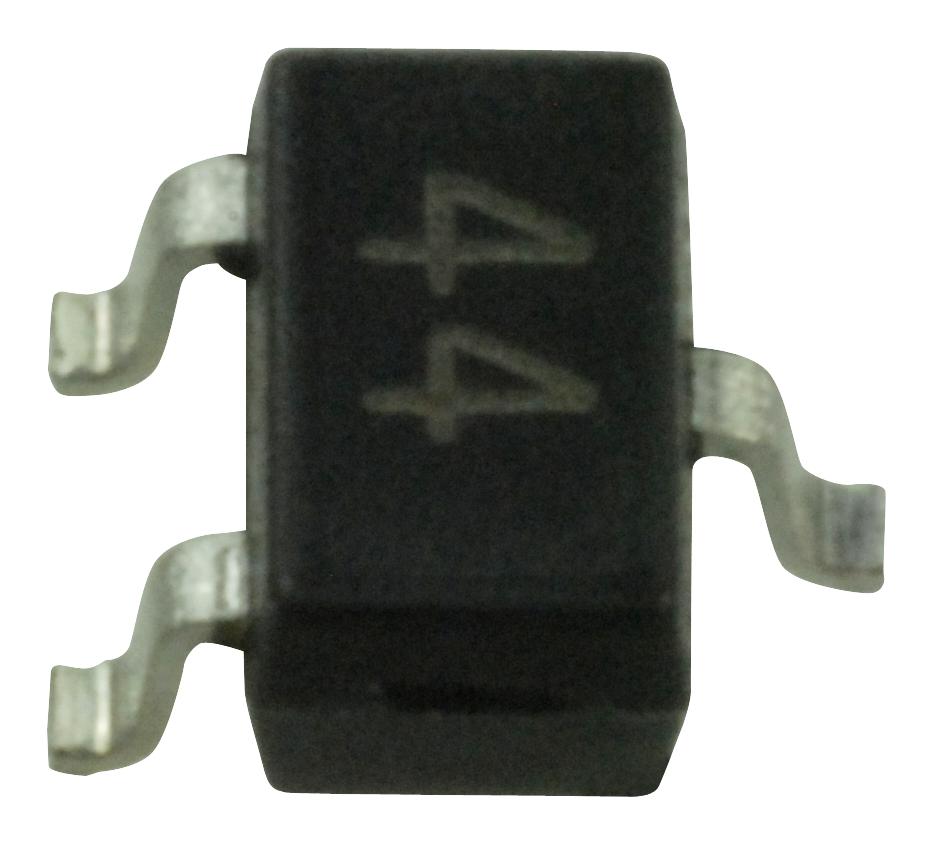

MULTICOMP-PRO BAS40W04 Schottky Barrier Diode
The BAS40W04 is a surface mount Schottky barrier diode designed for general-purpose switching applications. It features ultra-small SOT-323 packaging, fast switching response, and low forward voltage, making it ideal for efficient electronic circuit operation. The diode offers high reverse voltage tolerance of 40V, with a maximum continuous forward current of 200mA and surge current of 600mA. It provides transient and ESD protection with a guard ring, ensuring reliable performance in various electronic systems. Suitable for applications requiring fast switching and minimal power loss, it is a dependable component for compact circuit designs.
MULTICOMP-PRO BAS40W04 Schottky Barrier Diode Specifications:
- Peak repetitive reverse voltage: 40 V
- Working peak reverse voltage: 40 V
- Diode reverse voltage: 40 V
- Forward continuous current: 200 mA
- Non-repetitive peak forward surge current: 600 mA
- Power dissipation: 200 mW
- Junction temperature: 150 °C
- Storage temperature range: -65 to +150 °C
- Reverse breakdown voltage: 40 V at I=10A
- Forward voltage: 380 mV at I=1.0mA, 40mA at 300us
- Reverse leakage current: 200 nA at 30V and 300us
- Diode capacitance: 5 pF at 0V and 1.0MHz
- Reverse recovery time: 5 ns
- Package: SOT-323 surface mount package
- Dimensions: A 1.8-2.2 mm, B 1.15-1.35 mm, C 1.0 mm, D 0.15-0.35 mm, E 0.25-0.40 mm, G 1.2-1.4 mm, H 0.02-0.1 mm, J 0.1 mm, K 23-24 mm
- Package Quantity: 3000 units per tape and reel
Buy the Energy Series Schottky Barrier Diode: BAS40W04
Purchase the Energy Series BAS40W04 Schottky barrier diode online today for efficient, high-speed switching in your electronic projects. Its compact SOT-323 package saves space while providing reliable transient and ESD protection. Suitable for general-purpose applications, it features a reverse voltage of 40V, fast response times, and a low forward voltage of 380mV, ensuring minimal power loss. Ideal for circuit designers seeking high performance and durability, this diode is a perfect choice for modern electronic systems requiring compact, dependable components.
Order your Energy Series BAS40W04 today and ensure fast, reliable switching performance in your electronic designs with this efficient surface mount diode.
