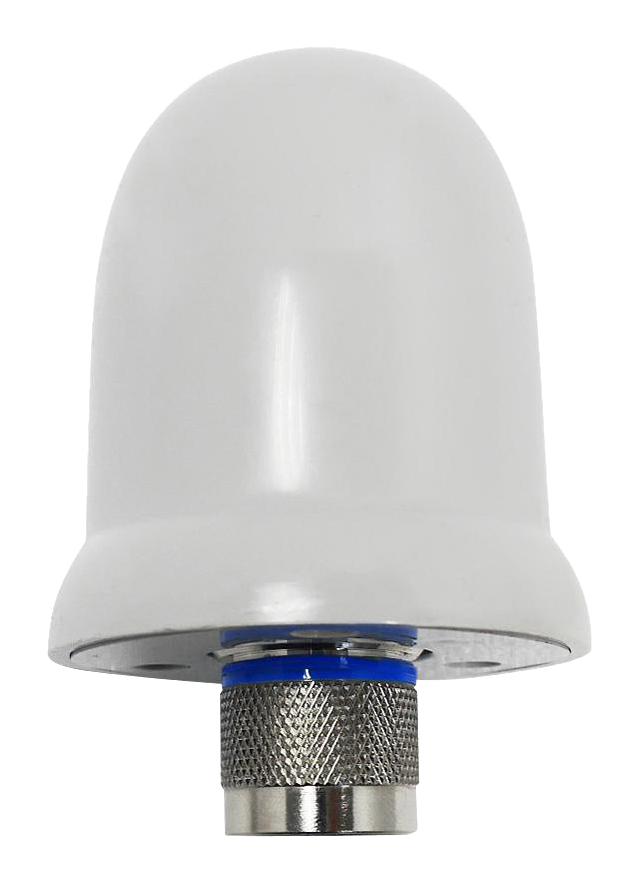

MULTICOMP-PRO MPOEGPSGLO016CN GPS Glonass Antenna
The GPS and Glonass outdoor antenna covers a frequency range from 1575 MHz to 1602 MHz, offering high gain, low noise figure, and reliable performance in outdoor environments. Designed with a sleek, durable PC housing in cool grey, it is suitable for precise satellite navigation applications. The antenna features a 50 ohm output impedance, maximum VSWR of 2, and operates efficiently within a temperature range of -40°C to +85°C. Its compact dimensions (55mm x 64mm) and lightweight (105g) make installation straightforward, ensuring consistent signal reception in demanding conditions.
MULTICOMP-PRO MPOEGPSGLO016CN GPS Glonass Antenna Specifications:
- Centre Frequency: 1575.42 MHz to 1602 MHz
- Gain (0°): 28.2 +3dBic / 28.1 +3dBic
- Output Impedance: 50Ω
- VSWR: 22 typ.
- Operation Voltage: DC 3V to 5V
- Current: 6.5 +2mA
- Temperature Range: -40°C to +85°C
- Humidity: 95% @55°C
- Antenna Housing Colour: Cool Grey 2C
- Housing Material: PC
- Weight: 105g
- Dimensions: 55mm (L) x 64mm (W)
- Radiation Pattern: 3D
Buy the Multicomp Series GPS Glonass Antenna: MPOE-GPSGLO-016-CN
Enhance your GPS and Glonass navigation systems with this outdoor antenna featuring 1575–1602 MHz coverage, high gain, and robust construction. Its compact size and lightweight design enable easy installation in various outdoor environments. Operating effectively from -40°C to +85°C, it provides stable signals even in harsh conditions. The antenna’s 50 ohm impedance, low noise figure, and high VSWR tolerance ensure excellent performance, making it ideal for navigation, tracking, and geolocation applications in demanding scenarios.
Get Multicomp GPS Glonass outdoor antenna MPOE-GPSGLO-016-CN today—highly reliable, weather-resistant, and optimized for satellite navigation precision.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPOEGPSGLO016CN?
You can click on the BUY or RFQ button to purchase MPOEGPSGLO016CN from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPOEGPSGLO016CN?
You can download the MPOEGPSGLO016CN datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPOEGPSGLO016CN?
MULTICOMP-PRO
