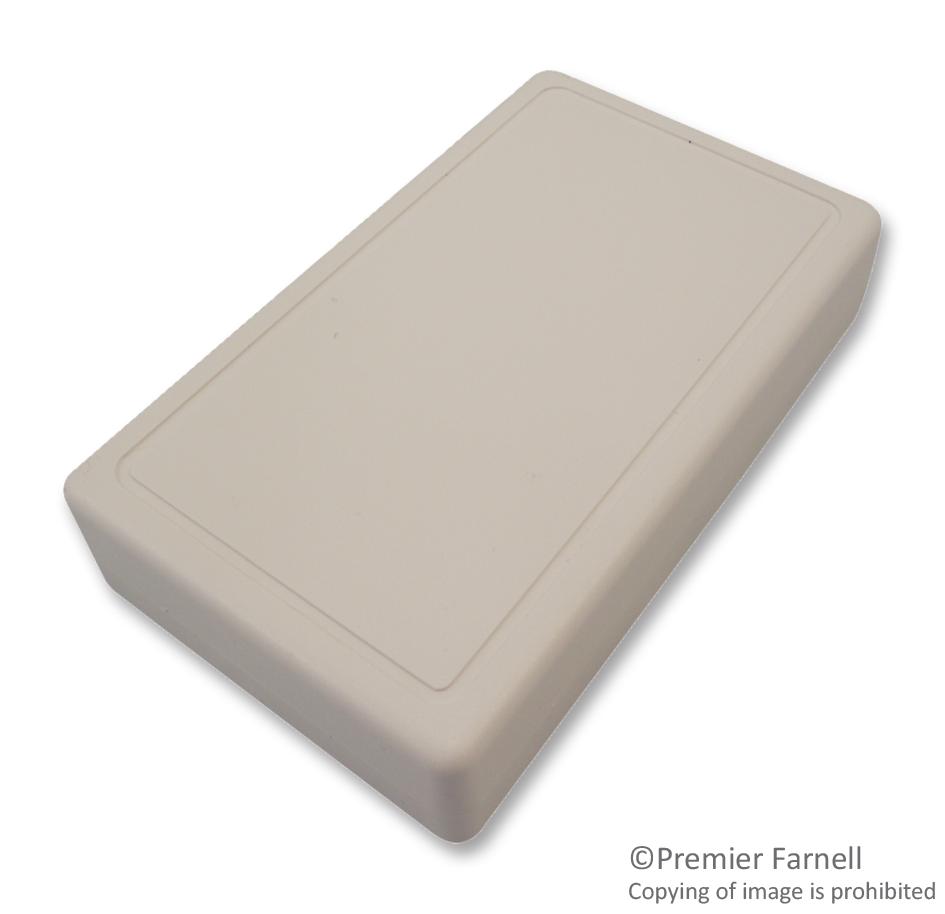

MULTICOMP-PRO BC2W Miniature Enclosure
The Miniature Case BC2 Series multicomp pro is a compact, impact-resistant enclosure made from high-quality ABS polymers, available in black, white, and grey. Featuring a textured matte finish, it includes a removable battery compartment with clip-in terminals, making it ideal for portable or handheld electronic projects. The case's design ensures a professional appearance with concealed fixing screws, integral PCB support, and optional pocket clips for easy attachment. Its durable construction and precise dimensions make it suitable for housing small electronic assemblies in industrial, automation, and electronic applications.
MULTICOMP-PRO BC2W Miniature Enclosure Specifications:
- Material: High-impact ABS polymer
- Color options: Black, White, Grey (RAL9002)
- External Dimensions: Length 103 mm, Width 62 mm, Height 23 mm
- Maximum PCB size: 64 x 56 mm
- Impact Resistance: Izod Impact Strength +23°C 17 kJ/m², -20°C 11 kJ/m²
- Tensile Strength at Yield: 50 N/mm²
- Elongation at Yield: 6%
- Flexural Strength: 87 N/mm²
- Hardness: Rockwell R112
- Heat Deflection Temperature: 97°C
- Vicat Softening Temperature: 97°C
- Density: 1.050 kg/m³
- Melt Flow Index: 13 dg/min
- Battery compartment: PP3, accessible via removable cover
- Fixing: Two self-tapping screws conceal the main halves and hold the cover
- Additional: Four location pegs for PCB support, textured matte finish, impact-resistant design
Buy the MultiComp Pyro BC2 – Reliable Enclosure for Industrial Applications
Secure your electronic assemblies with the Miniature Enclosure from the BC2 Series, designed for durability and convenience. Crafted from impact-resistant ABS, it features a removable battery compartment, integral PCB supports, and a professional matte finish. Its compact size makes it perfect for handheld and portable applications across industrial, automation, and electronic projects. Easy to assemble with concealed screws and optional pocket clip, this durable case guarantees a reliable and professional enclosure solution that enhances your project’s robustness and aesthetic appeal. Purchase online today to benefit from quality and convenience.
Order your MultiComp Pro BC2 impact-resistant enclosure today and ensure professional protection for your electronic projects with high-quality materials and thoughtful design.
