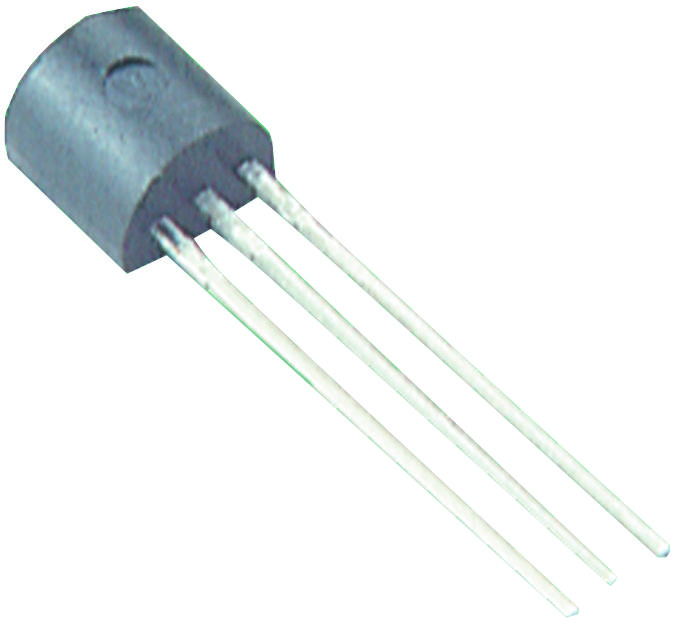

MULTICOMP PRO BC337 NPN Transistor
The BC337 is an NPN silicon planar transistor suitable for use in driver and output stages of audio amplifiers. It features a junction-to-ambient thermal resistance of 200°C/W in free air. This component is trusted in applications such as audio and signal processing. Multicomp Pro products, including this transistor, have a rating of 4.6 out of 5 stars, and come with a 12-month limited warranty. Due to high market demand, delivery times may be extended, and discounts are not applicable.
MULTICOMP PRO BC337 NPN Transistor Specifications:
- Collector-Emitter Voltage VcEO: 45 V
- Collector-Emitter Voltage Vces: 50 V
- Emitter-Base Voltage VEBO: 5 V
- Collector Current Continuous Ic: 800 mA
- Peak Collector Current Icm: 1 A
- Emitter Current Peak le: 1 A
- Base Current Continuous Ip: 100 mA
- Base Current Peak Ee: 200 mA
- Power Dissipation at Ta = 25°C PTA: 625 mW
- Thermal Resistance from Junction to Ambient Rth(j-a): 200°C/W
- Junction Temperature Range: -65 to +150°C
- Gain Group 16: 100-250
- Gain Group 25: 160-400
- Collector Emitter Saturation Voltage Vce(sat): <0.7V at Ic = 500mA
- Base Emitter On Voltage VBE (on): <1.2V at Ic = 500mA
- Frequency Fr: 200 MHz (Typ.) at Ic = 10mA, Vce = 5V, f= 35MHz
- Output Capacitance Cob: 5 pF at Vos = 10V, f= 1MHz
Buy the Buy Multicomp BC337 Part Number BC337 Online
Discover the high-performance NPN transistor perfect for driver and output stages in audio and signal processing applications. The BC337 provides a maximum collector-emitter voltage of 45V, a collector current of 800mA, and features a thermal resistance of 200°C/W for efficient heat dissipation. Its reliable design ensures consistent performance under various conditions, making it ideal for engineers and technicians. Purchase online today to benefit from fast delivery, competitive pricing, and trusted quality for your electronic projects or manufacturing needs.
Get Multicomp BC337 today—built for high current capacity and reliable performance in audio amplification and signal processing.
Frequently Asked Questions
Where can I buy MULTICOMP PRO BC337?
You can click on the BUY or RFQ button to purchase BC337 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part BC337?
You can download the BC337 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of BC337?
MULTICOMP PRO
