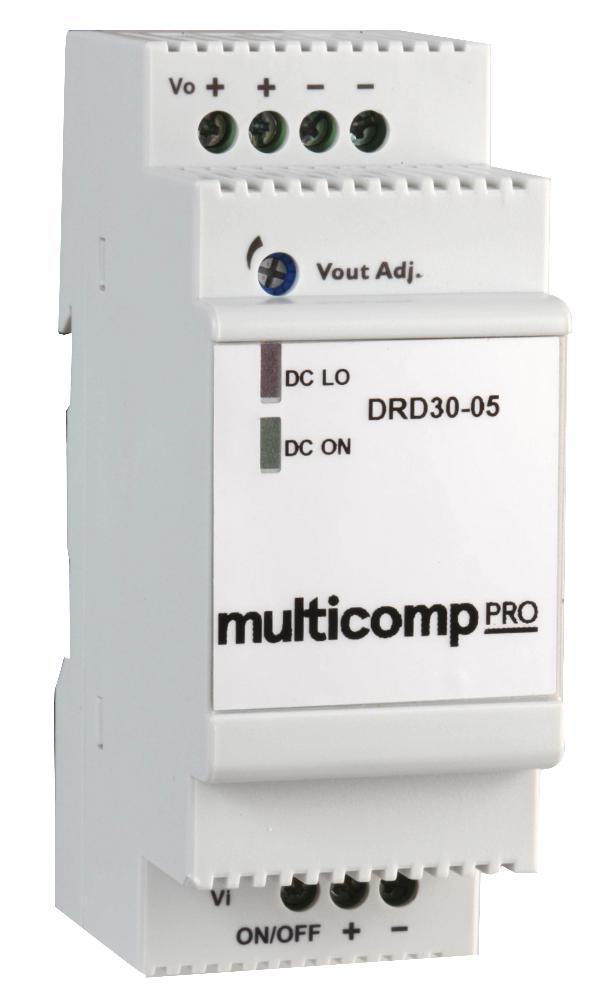

MULTICOMP PRO MPDRD3005 DC Power Supply
This 30W DC to DC power supply is designed with DIN rail mounting, suitable for industrial applications. It features a wide input voltage range of 10V to 36V DC, high efficiency (up to 85%), and low ripple & noise. With built-in protection against overvoltage, overcurrent, and short circuits, it provides reliable operation and easy installation. The power supply supports multiple output voltages, including +5V, +12V, +15V, and +24V, and operates in ambient temperatures from -40°C to +71°C. Its compact size and captive screw connections make it ideal for automation and control systems.
MULTICOMP PRO MPDRD3005 DC Power Supply Specifications:
- Input Voltage Range: 10V to 36V DC
- Output Voltage Range: 5V, 12V, 15V, 24V
- Maximum Output Power: 30W
- Output Current: 45A at 5V, 25A at 12V, 2A at 15V, 1.25A at 24V
- Efficiency: Up to 85%
- Isolation Voltage: 1500 VAC
- Isolation Resistance: 100 MΩ at 500V DC
- Operating Temperature: -40°C to +71°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 91mm x 35mm x 56.5mm
- Weight: 120g
- Switching Frequency: 100–200 kHz
- Derating: 25% from +51°C to +71°C
- Input Fuse: T6.3A / 125V DC
- Protection: Overvoltage, Overcurrent, Short Circuit, Remote ON/OFF
- Vibration Resistance: IEC 60068-2-6
- Shock Resistance: IEC 60068-2-27
- Certifications: UL 508, UL 60950-1, EN 61000-6-3, EN 61000-6-2
Buy the Multicomp PRO MPDRD3005 – Reliable DC-DC Power Supply for Industrial Applications
Secure your Multicomp PRO MPDRD3005 30W DIN rail mount DC-DC power supply online today. Designed for industrial automation, it offers wide input voltage, high efficiency up to 85%, and robust protection features. Its compact size fits seamlessly into control panels, providing reliable power across multiple output voltages including 5V, 12V, 15V, and 24V. Easy to install with snap-on DIN rail mounting, this power supply ensures stable operation in demanding environments, backed by a 3-year warranty for peace of mind.
Order your Multicomp PRO MPDRD3005 30W DIN rail mount DC-DC power supply today and enhance your industrial automation projects with dependable power.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDRD3005?
You can click on the BUY or RFQ button to purchase MPDRD3005 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDRD3005?
You can download the MPDRD3005 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDRD3005?
MULTICOMP PRO
