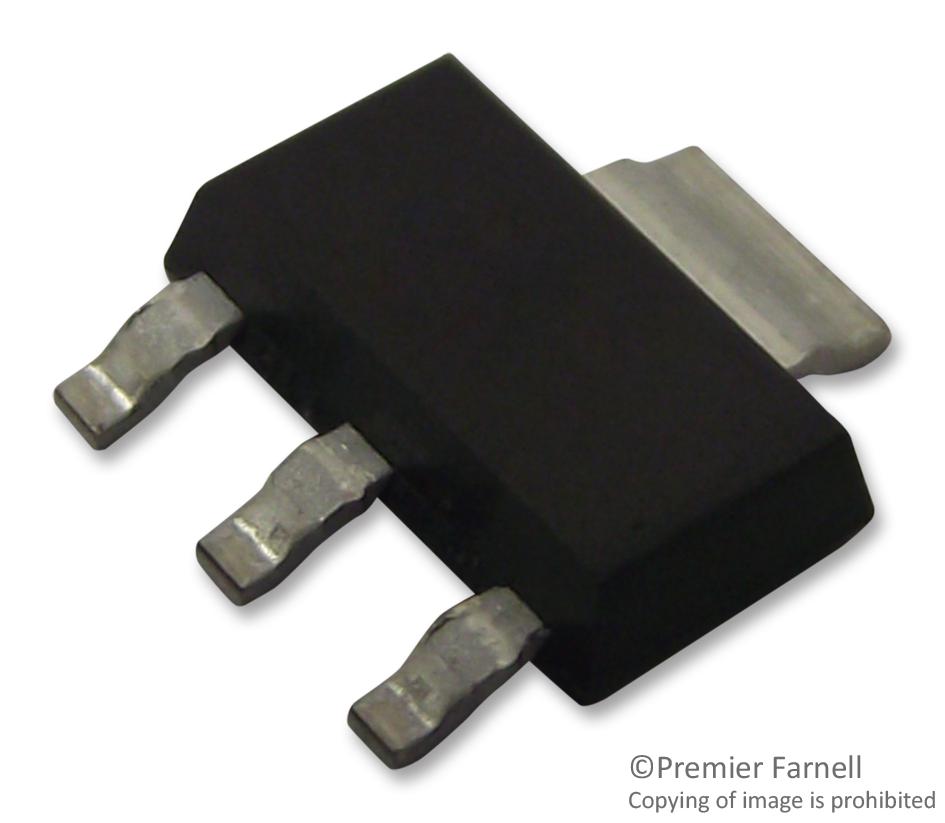

MULTICOMP PRO BCX5516 Silicon Transistor
The BCX55 is a high-performance NPN silicon transistor ideal for AF driver and output stages, offering high collector current and low saturation voltage for reliable operation in various electronic circuits. With a maximum collector-emitter voltage of 80V and collector current of 1A, it features high DC current gain up to 250 and transition frequency around 100 MHz. Encased in a SOT-89 package, this transistor is suitable for applications requiring efficient switching and amplification, making it a core component for industrial and consumer electronics.
MULTICOMP PRO BCX5516 Silicon Transistor Specifications:
- Collector-Base Voltage: 45V (BCX54), 60V (BCX55), 100V (BCX56)
- Collector-Emitter Voltage: 45V (BCX54), 60V (BCX55), 80V (BCX56)
- Emitter-Base Voltage: 5V
- DC Collector Current: 1A
- Peak Collector Current: 15A
- Base Current: 100mA
- Peak Base Current: 200mA
- Total Power Dissipation: 500mW at 130°C
- Transition Frequency: 100MHz
- Package: SOT-89
- Dimensions: Length 45-47mm, Width 23-27mm, typical height 4.5mm, pin length 14mm, pin width 0.4mm
- Operating Temperature Range: -65°C to +150°C
- Storage Temperature: -65°C to +150°C
- Collector-Base Breakdown Voltage: up to 100V
- Collector-Emitter Breakdown Voltage: up to 80V
- Collector-Base Cut-off Current: 100nA at -30V
- DC Current Gain: 25 (VCE=2V, IC=5mA), up to 250 (VCE=-2V, IC=-150mA)
Buy the NPN Silicon Transistor – Reliable AF Driver for Industrial Applications
Order the BCX55 silicon transistor online today and enhance your electronic projects with high gain, low saturation voltage, and robust maximum ratings. Suitable for AF driver and output stages, it offers excellent performance for industrial, consumer, and automation circuits. With a compact SOT-89 package, it ensures reliable operation across a wide temperature range, making it ideal for demanding applications. Purchase now to benefit from fast shipping, genuine quality, and technical support for your manufacturing or repair needs.
Buy BCX55 now and experience unmatched reliability and performance in amplification and switching applications, suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO BCX5516?
You can click on the BUY or RFQ button to purchase BCX5516 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part BCX5516?
You can download the BCX5516 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of BCX5516?
MULTICOMP PRO
