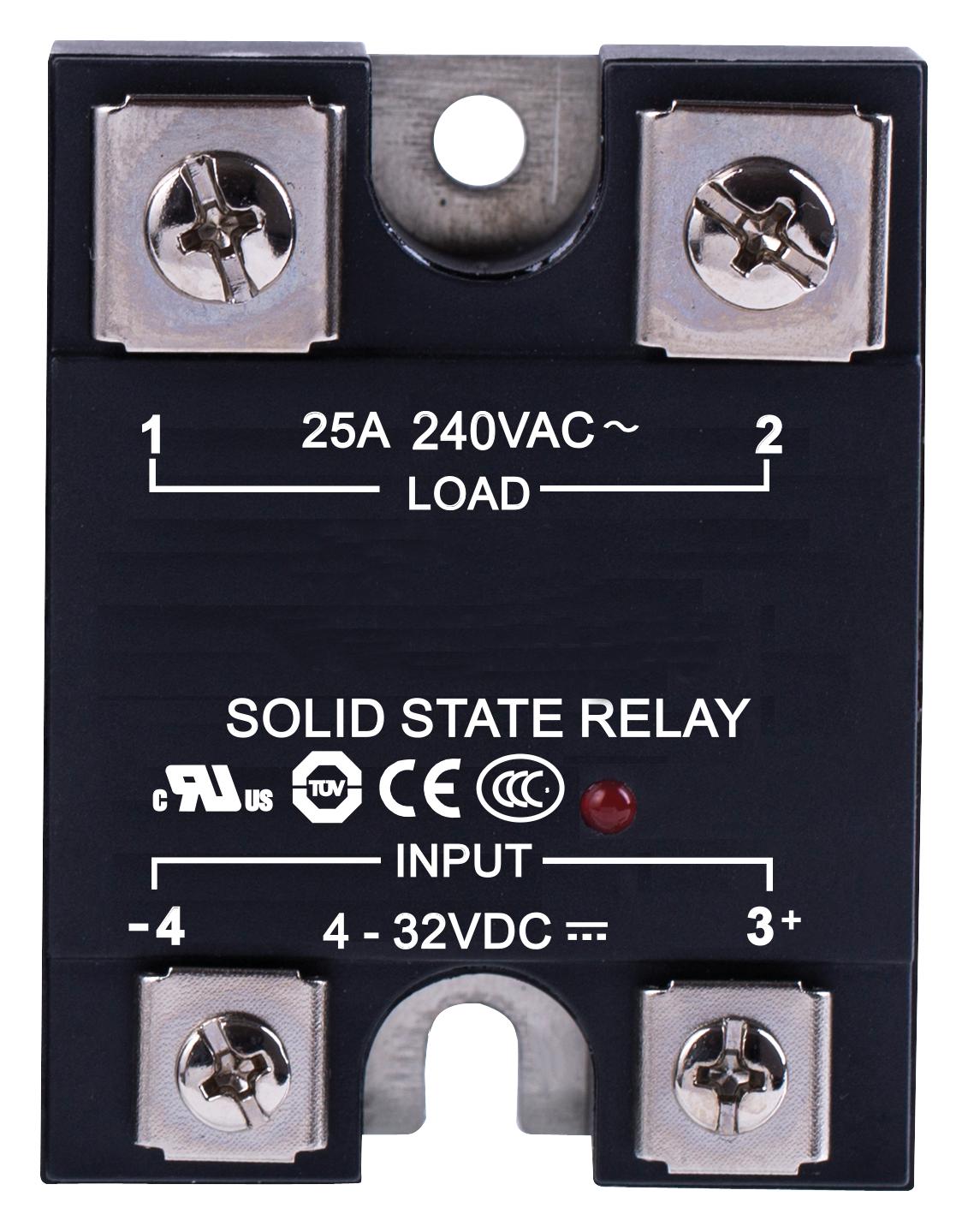

MULTICOMP-PRO MCKSI240D25LM070 Solid State Relay
The industrial solid state relay with SCR output is designed for reliable control of resistive, inductive, and capacitive loads in various automation and industrial processes. Operating with a control voltage of 4-32V DC, it can switch loads from 48V to 280V AC at currents of 10A or 25A. Features include zero crossing switching, superior thermal performance, dielectric strength of 4000VAC, MOV protection, and an ambient temperature range of -30°C to +80°C. Ideal for HVAC, machinery, and high-temperature chambers, it ensures efficient and safe operation in demanding environments.
MULTICOMP-PRO MCKSI240D25LM070 Solid State Relay Specifications:
- Control Voltage Range: 4V DC to 32V DC
- Max. Turn-On Voltage: 4V DC
- Max. Turn-Off Voltage: 1V DC
- Max. Input Current: 25mA
- Load Voltage: 48 ~ 280V AC
- Rated Current: 10A or 25A
- Max Surge Current: 100A (10A load), 250A (25A load)
- Turn-on Time: 10ms
- Max. Turn-off Time: 10ms
- Transient Over Voltage: 600Vpk
- Leakage Current: 5mA
- Voltage Drop: 1.5Vrms
- Dielectric Strength (Input/Output): 4000Vrms
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 196g
- Dimensions: Refer to datasheet diagrams
- Protection: MOV circuit, dielectric strength, zero crossing switch
Buy the Multicomp Solid State Relay – Reliable SCR Control for Industrial Applications
Enhance your industrial control systems with the high-performance solid state relay from Multicomp Pro. This relay features an SCR output, switchable loads from 48V to 280V AC at 10A or 25A, and control voltage of 4-32V DC. Its zero crossing switching ensures smooth operation, plus dielectric strength of 4000VAC and MOV protection for safety. Suitable for HVAC, machinery, and high-temperature chambers, this relay provides reliable, efficient, and safe switching in demanding industrial environments. Order online today for fast delivery and excellent support.
Buy Multicomp Solid State Relay with SCR output now and experience unmatched reliability and performance for your industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCKSI240D25LM070?
You can click on the BUY or RFQ button to purchase MCKSI240D25LM070 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKSI240D25LM070?
You can download the MCKSI240D25LM070 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCKSI240D25LM070?
MULTICOMP-PRO
