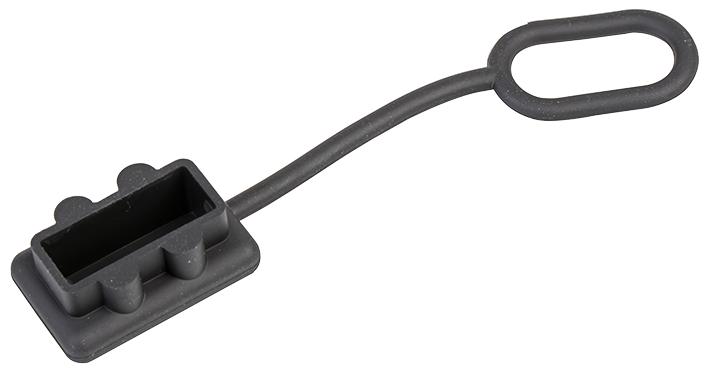

MULTICOMP PRO BMC2MSDC1 Battery Connector
The BMC series battery modular connectors are designed for high-current power connections, suitable for 15 to 350 amperes at up to 600 volts AC or DC. Made from durable polycarbonate housing with stainless steel springs, these connectors feature color-coded housings to prevent mismatching and ensure safety in various applications like UPS systems, telecommunication, electric vehicles, and chargers. Available in single and double-pole configurations, they provide reliable electrical contact, with copper-silver or copper-tin plated contacts for enhanced conductivity and longevity. The series offers a range of sizes and current ratings tailored for professional use in demanding environments.
MULTICOMP PRO BMC2MSDC1 Battery Connector Specifications:
- Housing Material: Polycarbonate (PC)
- Spring Material: Stainless Steel
- Contact Material: Copper-Silver Plated or Copper-Tin Plated
- Current Ratings: 15A to 350A depending on model
- Voltage Rating: Up to 600V AC/DC
- Wire Range: AWG20-16, AWG16-12, AWG14-10, 2/0 AWG
- Housing Colors: Red, Black, Green, Blue, Brown, Grey, White
- Housing Sizes: Small (S), Middle (M), Large (L)
- Pole Configurations: 1 Pole, 2 Pole
- Operating Temperature Range: -20°C to 125°C
- Retainer Force: Up to 50 Ibs
- Insertion Force: Up to 25 Ibs
- Connection Type: Crimp, Push-in
- Application: Battery packs, electric vehicles, UPS, telecommunication equipment
Buy the Buy Multicomp Modular Battery Connectors Part Number BMC2MSDC1 Online
Enhance your electrical systems with the reliable high-current battery connectors from Multicomp. Designed to handle up to 350 amperes at 600 volts, these connectors feature durable polycarbonate housings and corrosion-resistant contacts, providing secure power connections for a range of demanding applications. Available in multiple sizes, colors, and configurations including single and double-pole options, they ensure safety, efficiency, and longevity. Easily crimped or pushed into place, making installation straightforward and dependable for professionals handling electric vehicles, UPS systems, and industrial equipment.
Order your Multicomp Series 2MS 350A battery modular connector today and ensure secure, high-current power connections for your professional projects.
