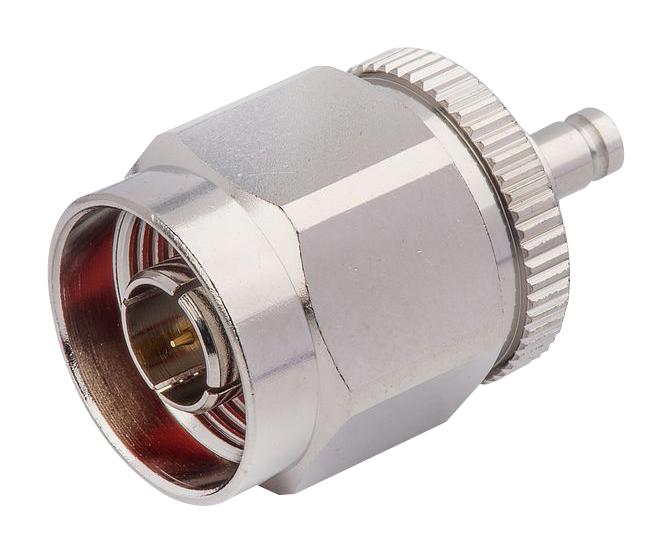

MULTICOMP-PRO MC002944 RF Adapter
This straight N plug to 1.0/2.3 jack adaptor offers reliable RF signal connections for professional and industrial applications. With a frequency range of DC-6GHz and 75Ω impedance, it ensures minimal signal loss and excellent performance. Built with high-quality brass bodies, beryllium copper center contact, and PTFE insulation, it features durable nickel plating for longevity. Compliant with MIL-STD-348B and DIN 41626-2 standards, it operates effectively between -55°C to +125°C, making it ideal for transmitting RF signals in various environments and high-frequency signal systems.
MULTICOMP-PRO MC002944 RF Adapter Specifications:
- Adaptor Style: Straight Adaptor
- Connector Type A: N Plug
- Connector Type B: 1.0/2.3 Jack
- Frequency Range: DC-6GHz
- Nominal Impedance: 75Ω
- Voltage Rating: 250V Max
- VSWR: 1.2 Max
- Bodies: Brass per JIS-3604
- Centre Contact: Beryllium Copper per ASTM B196 UNS C17300
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Interface: MIL-STD-348B, DIN 41626-2
- Operating Temperature: -55°C to +125°C
- Material Finish: Nickel-plated brass bodies, gold-plated centre contact
- Dimensions: Millimetres (Inches)
Buy the Multicomp MC002944 U–Reliable RF Adaptor for Industrial Applications
Enhance your RF connections with this high-quality N plug to 1.0/2.3 jack adaptor. Designed for reliable performance in industrial and professional settings, it offers a wide frequency range up to 6GHz, impedance of 75Ω, and excellent durability. Constructed with brass bodies, beryllium copper contacts, and PTFE insulation, it withstands temperature extremes from -55°C to +125°C. This adaptor ensures stable, low-loss RF signals, meeting industry standards while providing long-lasting performance for high-frequency electronic systems.
Buy Multicomp MC002944 now and experience unmatched RF signal integrity and durability in professional and industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002944?
You can click on the BUY or RFQ button to purchase MC002944 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002944?
You can download the MC002944 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002944?
MULTICOMP-PRO
