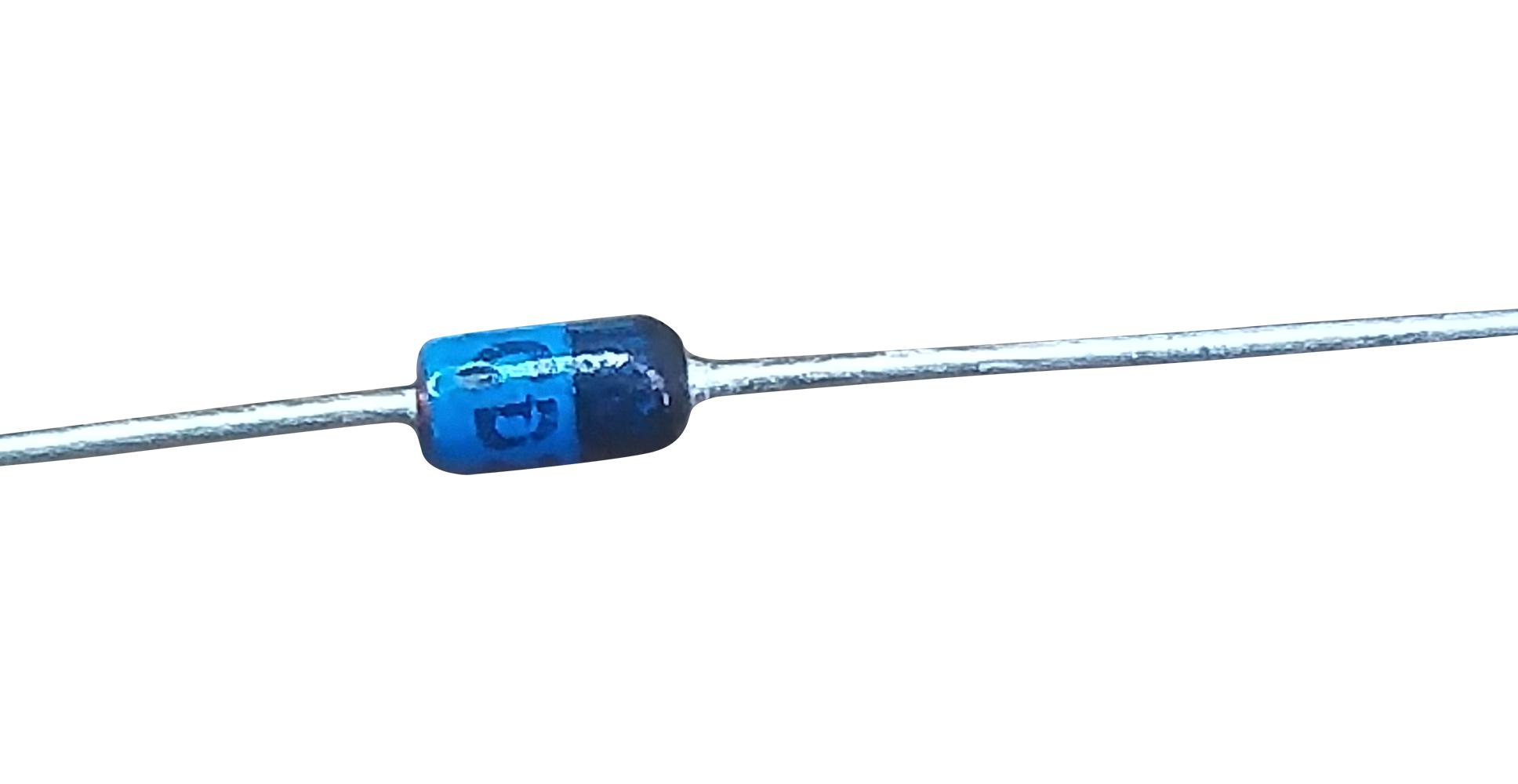

MULTICOMP PRO CD286 High Voltage Diode
The silicon epitaxial planar diode model CD286 delivers reliable high voltage switching performance, with a maximum repetitive reverse voltage of 250V and continuous reverse voltage of 200V. It features a low forward voltage drop of less than 1V at 100mA current, and a forward current capacity of 250mA. Its low reverse current of less than 100pA at 150°C and a breakdown voltage exceeding 250V make it suitable for high-voltage applications. Encased in a durable DO-35 glass axial package, this diode supports safe operation up to 175°C junction temperature, offering high reliability in various electronic circuits.
MULTICOMP PRO CD286 High Voltage Diode Specifications:
- Peak Repetitive Reverse Voltage: 250V
- Reverse Voltage (Continuous): 200V
- Forward Current: 250mA
- Repetitive Peak Forward Current: 625mA
- Total Power Dissipation: 500mW
- Junction Temperature: 175°C
- Storage Temperature Range: -65°C to +175°C
- Forward Voltage: <1V at 100mA, <1.25V at 200mA
- Reverse Current: <100pA at Vr=250V, 150°C
- Breakdown Voltage: >250V
- Diode Capacitance: <5pF
- Reverse Recovery Time: <50ns
- Package: DO-35 glass axial
- Marking: Cathode band for identification
Buy the Farnell Series Multicomp Diode: CD286
Purchase the Multicomp CD286 high-voltage diode online today to ensure dependable performance in high-voltage switching applications. Featuring a maximum reverse voltage of 250V, a forward current of 250mA, and robust package design, this diode is perfect for electronic devices requiring high reliability. Its low reverse leakage, high breakdown voltage, and excellent thermal performance make it suitable for demanding environments. Buy online now for fast delivery, easy ordering, and quality assurance with each unit designed to meet industrial standards.
Get Multicomp CD286 diode today—built for high-voltage switching, high reliability, and long-lasting durability.
