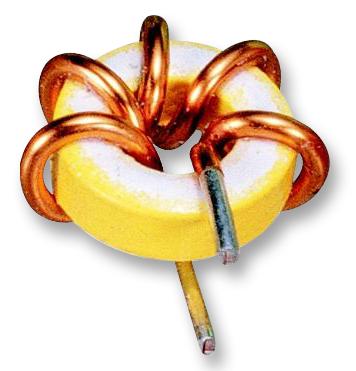

MULTICOMP PRO MCAP108018069A221MU High-Current Inductor
This high-quality inductor features a 220uH inductance with 20% tolerance, designed for reliable performance in electronic circuits. It operates within a temperature range of -55°C to +130°C and has a DCR of max 56mΩ at 25°C, ensuring efficient current handling with a 4A Irms rating. The inductor uses a T80-75-TAF200 core, UEFN/U wire rated at 155°C, and lead-free solder, making it suitable for various applications requiring durability, stability, and RoHS compliance.
MULTICOMP PRO MCAP108018069A221MU High-Current Inductor Specifications:
- Inductance: 220uH, ±20%
- Operating temperature: -55°C to +130°C
- DCR: Max 56mΩ at 25°C
- Current rating: 4A Irms
- Core Material: T80-75-TAF200 (Red / White)
- Wire: UEFN/U (155°C)
- Solder: Lead-free Sn99.3% / Cu0.7%
- Dimensions (approx.): Length 26.5mm, Width 14mm, Height 25mm +2mm
- Frequency range: 10kHz to 1MHz for inductance stability
- RoHS compliant, meets J-STD standards, and tested for moisture sensitivity and solderability
Buy the Multicomp Series RC Inductor: MCAP108018069A-221MU
Purchase the Multicomp RC inductor MCAP108018069A-221MU online today and enhance your electronic projects with a reliable, RoHS-compliant component. This 220uH inductor offers a 20% tolerance, operates efficiently within a -55°C to +130°C temperature range, and handles up to 4A of current. Constructed with high-quality T80-75-TAF200 core and UEFN/U wire rated at 155°C, it ensures stability and durability in demanding environments. Easy to integrate, it is ideal for power supplies, filters, and other inductive applications requiring consistent performance.
Get Multicomp series MCAP108018069A-221MU today—built for durability, high current handling, and stable performance in your electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCAP108018069A221MU?
You can click on the BUY or RFQ button to purchase MCAP108018069A221MU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCAP108018069A221MU?
You can download the MCAP108018069A221MU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCAP108018069A221MU?
MULTICOMP PRO
