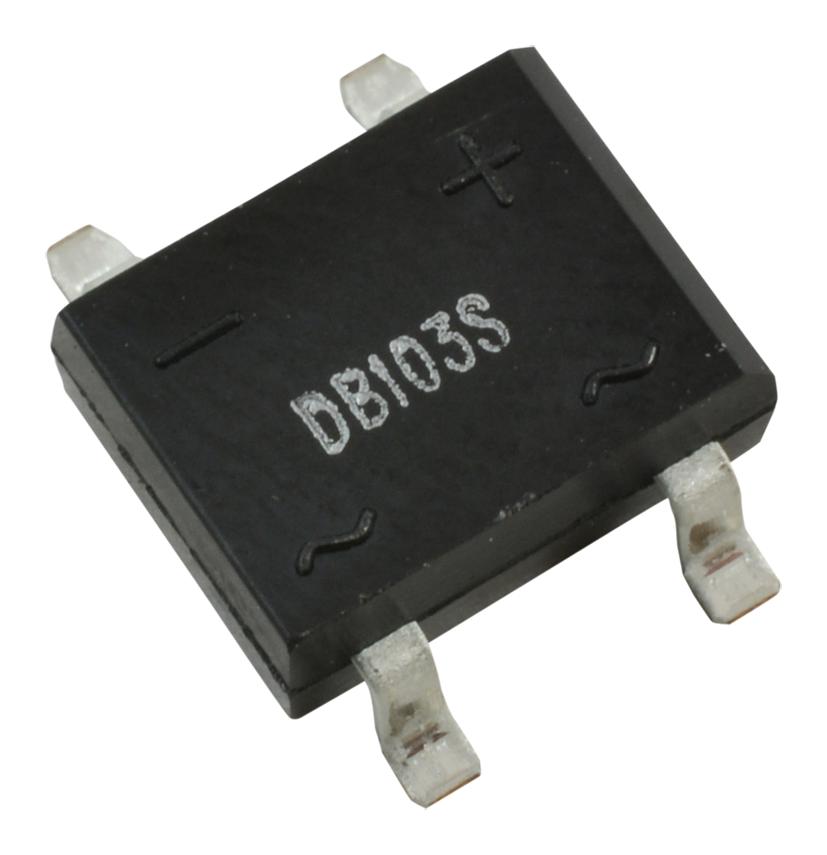

MULTICOMP PRO DB103S Bridge Rectifier
The DB103S is a reliable single-phase bridge rectifier diode featuring molded plastic construction, low forward voltage drop, and high current capacity. Designed for mains rectification, it offers a maximum RMS voltage of 140V, wide temperature range from -55°C to 150°C, and UL94V-0 flammability rating. The device's glass-passivated design ensures durability and stability, with polarity clearly marked for easy installation. Suitable for PCB mounting, it provides consistent performance in power conversion applications, combining affordability with dependable operation across various electronic systems.
MULTICOMP PRO DB103S Bridge Rectifier Specifications:
- Maximum RMS Voltage: 140V
- Maximum DC Blocking Voltage: 200V
- Maximum Average Forward Rectified Current: 1A
- Peak Forward Surge Current: 30A
- Maximum Forward Voltage at 1A: 1.4V
- Maximum Reverse Current at 25°C: 10A
- Operating Temperature Range: -55°C to 150°C
- Material: Molded plastic with UL94V-0 flammability classification
- Mounting Position: Any
- Dimensions: not specified in detail, suitable for PCB mounting
- Weight: 0.38g
- Reliability: Glass-passivated construction for durability
- Application: Power rectification, electronic power supplies
Buy the Multicomp Series DB Series Bridge Rectifier: DB103S
Order the Multicomp DB103S bridge rectifier online today for dependable power conversion in your electronic projects. Designed with molded plastic for durability, it supports a maximum RMS voltage of 140V and a forward current of 1A, suitable for a wide temperature range from -55°C to 150°C. Easy to mount on printed circuit boards, it features low forward voltage drop, high surge current capacity, and UL94V-0 flammability. Ensure optimal performance for mains rectification, power supplies, and industrial applications—buy now for quick delivery and quality assurance.
Get Multicomp DB103S today—built for reliable power rectification and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DB103S?
You can click on the BUY or RFQ button to purchase DB103S from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DB103S?
You can download the DB103S datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DB103S?
MULTICOMP PRO
