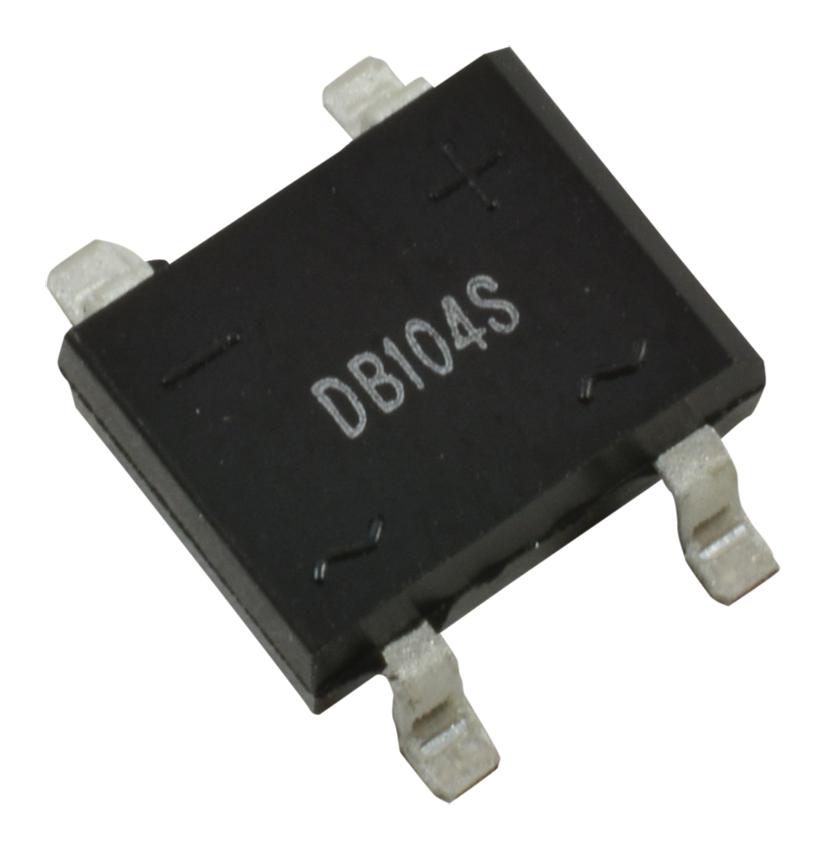

MULTICOMP PRO DB104S bridge rectifier
The DB104S is a surface mount glass passivated bridge rectifier designed for reliable use in printed circuit boards. It features a molded plastic case with UL94V-0 flammability rating, low forward voltage drop, and high current capability. With a maximum RMS voltage of 280V and a maximum DC blocking voltage of 400V, it handles up to 1A forward current. Its typical junction capacitance is 25pF per element, and it has a thermal resistance of 40°C/W, making it ideal for mains rectification and industrial electronics.
MULTICOMP PRO DB104S bridge rectifier Specifications:
- Maximum Recurrent Peak Voltage: 50, 100, 200, 400, 600, 800, 1000 V
- Maximum RMS Voltage: 35, 70, 140, 280, 420, 560, 700 V
- Maximum DC Blocking Voltage: 50, 100, 200, 400, 600, 800, 1000 V
- Maximum Forward Surge Current at 8.3ms: 50 A
- Maximum Average Forward Rectified Current: 1 A
- Maximum Forward Voltage at 1A: 1.4 V
- Maximum Reverse Current at 25°C: 10 A
- Reverse Current at 125°C: 500 A
- Typical Junction Capacitance: 25 pF
- Thermal Resistance: 40°C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: High temperature range suitable for industrial applications
- Plastic Material: UL94V-0 flammability rated
- Dimensions: Standard SMD package suitable for PCB mounting
Buy the Buy Multicomp Bridge Rectifier Part Number DB104S Online
Purchase the Multicomp DB104S bridge rectifier online today for dependable mains rectification and power management. Designed with a robust molded plastic case and UL94V-0 flammability rating, this PCB surface mount component offers a maximum RMS voltage of 280V and 1A forward current. Its low junction capacitance of 25pF and thermal resistance of 40°C/W make it suitable for high-performance industrial and electronic applications. Enjoy fast delivery and secure online ordering for this durable, cost-effective rectification component.
Order your Multicomp SeriesDB104S surface mount bridge rectifier today and ensure efficient, reliable power conversion for your PCB-based electronics projects.
