MULTICOMP PRO ES1J Ultra-Fast Diode
The ultra-fast diode is a surface-mount component designed for high-efficiency applications, featuring glass passivated junctions and a low profile plastic package. It offers a maximum reverse voltage of 600V and a forward current of 1A, with a fast recovery time of 35 ns, making it ideal for switching power supplies and high-speed electronic circuits. The diode has lead-free, tin-plated terminals, withstands high-temperature soldering up to 260°C, and is RoHS compliant. Its compact design ensures easy automated placement and reliable performance in demanding environments.
MULTICOMP PRO ES1J Ultra-Fast Diode Specifications:
- Maximum Recurrent Peak Reverse Voltage: 600V
- Maximum RMS Voltage: 420V
- Maximum DC Blocking Voltage: 600V
- Maximum Average Forward Rectified Current: 1A
- Peak Forward Surge Current: 30A
- Maximum Instantaneous Forward Voltage at 1A: 1.7V
- Maximum Reverse Recovery Time: 35 ns
- Typical Junction Capacitance: 8 pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Case: SMA/DO-214AC
- Terminals: Pure tin plated, lead-free
- Weight: 0.064 g
- Built-in strain relief for robust connections
- Glass passivated junction for stability and reliability
- Suitable for surface mounted applications with easy pick and place
- RoHS compliant and compliant with glass passivated junction chip standards

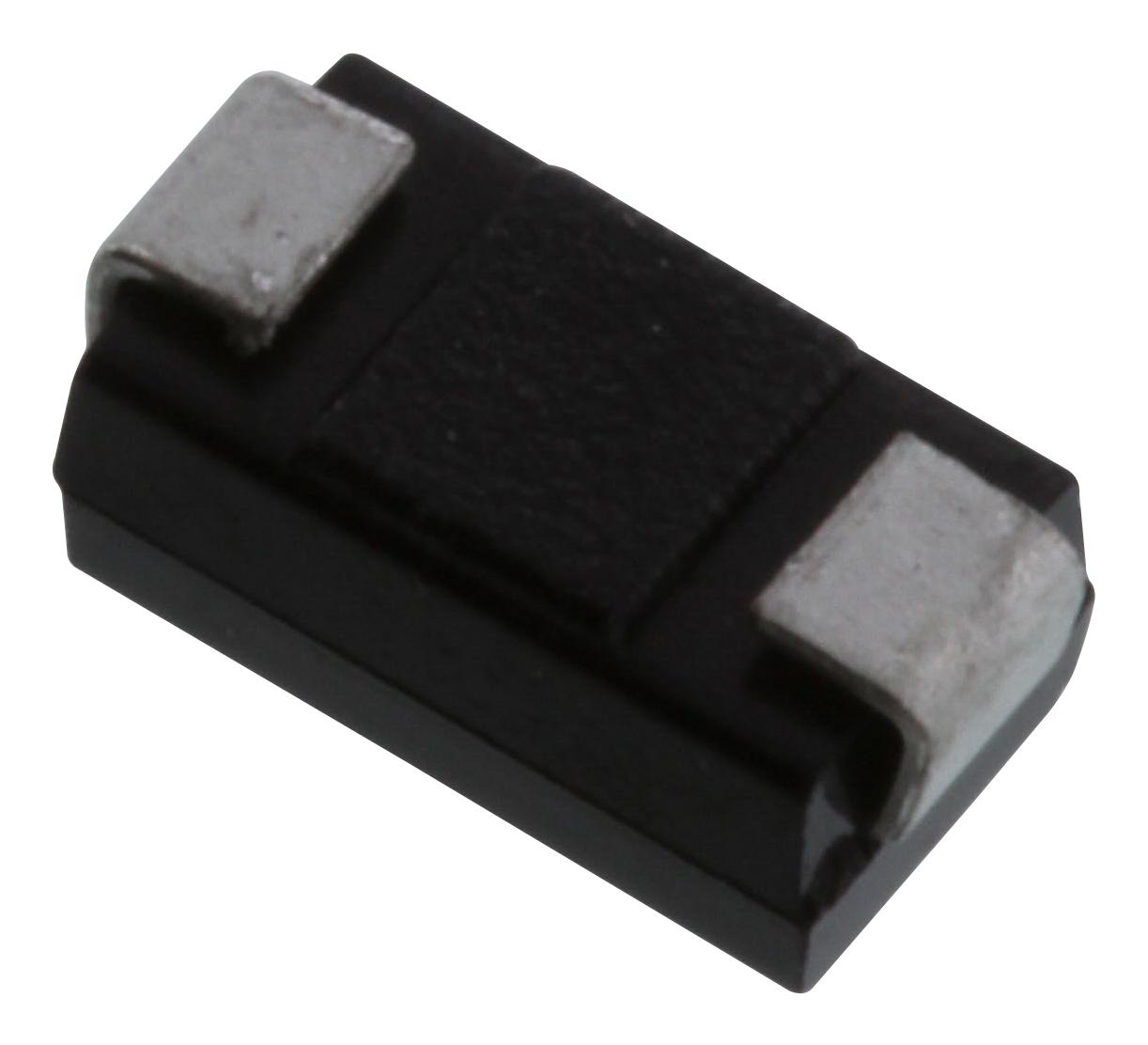

Buy the Multicomp Series ES1J Ultra-Fast Diode: ES1J+
Upgrade your electronic projects with the high-performance, ultra-fast diode designed for efficiency and reliability. Featuring a maximum reverse voltage of 600V and a forward current of 1A, this diode offers a rapid recovery time of just 35 ns, ensuring high-speed switching applications. Its RoHS compliant, lead-free construction includes glass passivated junctions for optimal stability. The compact, surface-mount design facilitates automated placement and secure connections, making it ideal for power supplies, inverter circuits, and other demanding electronic systems. Purchase online now for fast delivery and dependable performance.
Order your Multicomp Series ES1J Ultra-Fast Diode today and enhance your high-speed electronic designs with reliable performance and quick switching capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES1J?
You can click on the BUY or RFQ button to purchase ES1J from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES1J?
You can download the ES1J datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES1J?
MULTICOMP PRO
