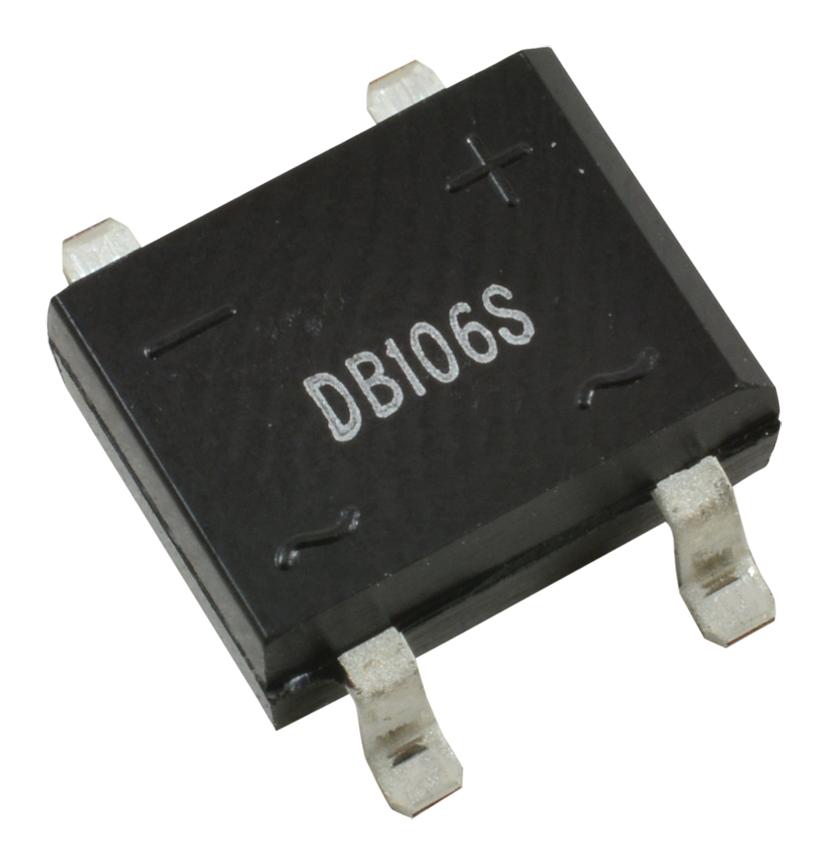

MULTICOMP PRO DB106S bridge rectifier
The DB106S is a robust single-phase bridge rectifier diode with a molded plastic case, offering low forward voltage drop and high current capacity. Designed for reliable operation, it features clear polarity markings and is suitable for SMT mounting in various electronic applications. With a maximum RMS voltage of 560V and an operating temperature range from -55°C to 150°C, this component is ideal for power supplies, mains rectification, and electronic circuits requiring high durability and efficiency. Its UL94V-0 flammability rating ensures safety and compliance.
MULTICOMP PRO DB106S bridge rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 1000 V
- Maximum RMS Voltage: 560 V
- Maximum DC Blocking Voltage: 1000 V
- Maximum Average Forward Rectified Current at 40°C: 1 A
- Peak Forward Surge Current (8.3 ms): 30 A
- Maximum Forward Voltage at 1 A: 1.4 V
- Maximum Reverse Current at 25°C: 10 A
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: not specified explicitly, typical for SMT package
- Mounting Position: Any
- Material: Molded plastic with UL flammability classification 94V-0
- Junction Capacitance: approximately 25 pF at 1 MHz
Buy the Buy Multicomp DB106S Part Number DB106S Online
Order the Multicomp DB106S online today for a reliable, high-capacity bridge rectifier ideal for power supply applications. This SMT-compatible component features low forward voltage, high current handling, and excellent durability, making it perfect for mains rectification and electronic circuit use. Its UL94V-0 flammability rating ensures safety, while the operating temperature range from -55°C to 150°C supports a wide variety of environments. Purchase now for fast delivery and secure your power electronic solutions with a trusted components supplier.
Get Multicomp DB106S today—built for high current power rectification and reliable electronic circuit performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DB106S?
You can click on the BUY or RFQ button to purchase DB106S from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DB106S?
You can download the DB106S datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DB106S?
MULTICOMP PRO
