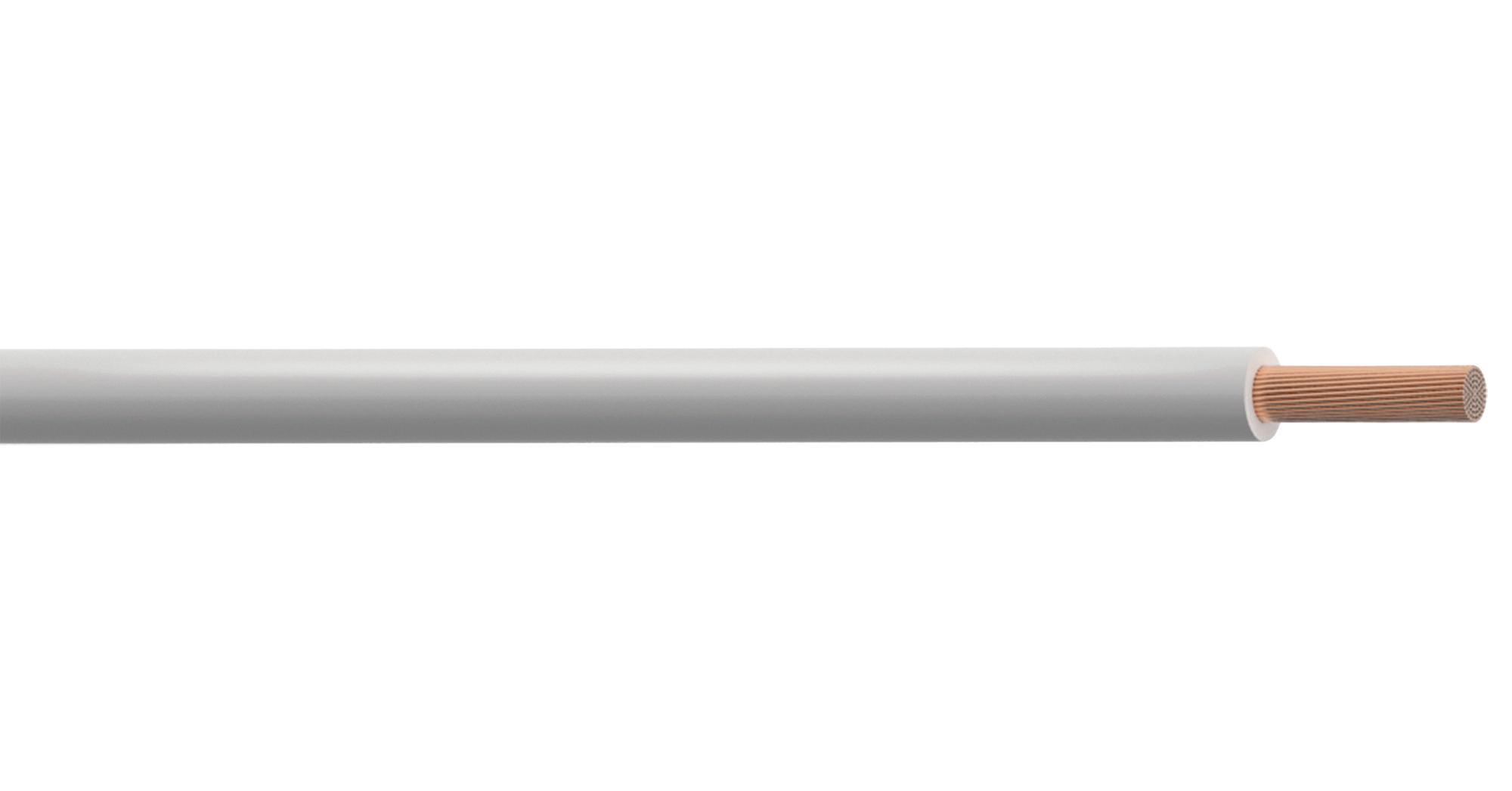

MULTICOMP PRO PP001288 Flexible Equipment Wire
The PP001288 is a 100-meter flexible equipment wire featuring a class 5 flexible copper conductor conforming to BS EN 60228 standards (formerly BS 6360). It is insulated with PVC type TI3 according to BS EN 50363, ensuring high temperature resistance and flame retardancy. Suitable for switch control panels, relay and instrumentation panels of power switchgear, as well as internal connections within rectifier equipment and controllers. Meets international standards including BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332, CSA C22.2 No. 210, and UL 1015, with a voltage rating of 450/750V and a maximum temperature of 105°C, offering reliable industrial performance.
MULTICOMP PRO PP001288 Flexible Equipment Wire Specifications:
- Conductor: Class 5 flexible copper conductor conforming to BS EN 60228 standards
- Insulation: PVC type TI3, flame retardant, high temperature resistant
- Voltage Rating: 450/750V as per BS 6231 and international standards
- Maximum Temperature: +105°C
- Minimum Operating Temperature: -15°C
- Overall Length: 100 meters (or per meter options available)
- Reel Length: 100 m or per meter
- Minimum Bending Radius: 6 x overall diameter
- Conductor Resistance at 20°C: 19.5 ohms/km
- Standards: BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332, CSA C22.2 No. 210, UL 1015
- Color Options: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
Buy the Electrical Equipment Wire Series Multicomp – PVC Insulated Copper Core: PP001288
Order the flexible PVC equipment wire PP001288 online today for dependable control panel connections, motor drives, and industrial wiring. This high-quality copper conductor wire conforms to multiple international standards, including BS 6231 and UL 1015, with a voltage rating of 450/750V and a temperature maximum of 105°C. It offers excellent flame retardancy, high-temperature durability, and flexibility, making it ideal for demanding electrical environments. Available in reel lengths of 100 meters or per meter, this wire ensures safe, efficient, and reliable power distribution in industrial control and electrical systems.
Buy Multicomp equipment wire PP001288 now and experience high temperature resistance, flame retardancy, and reliable electrical performance for industrial use.
