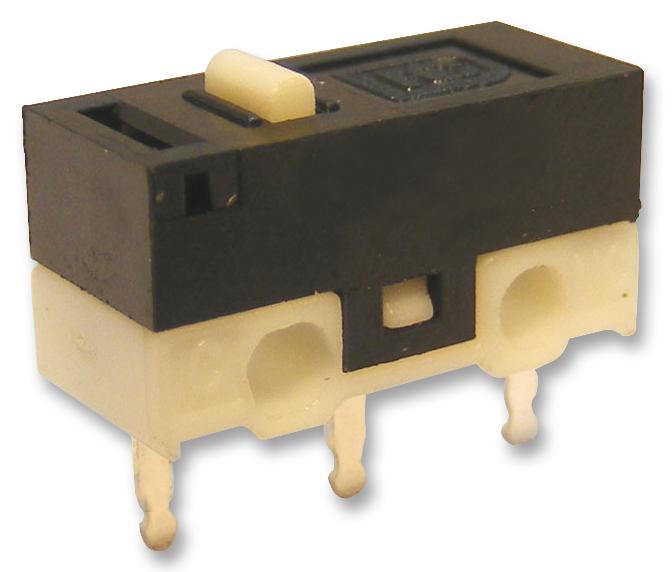

MULTICOMP-PRO DM100P1103 Sub-miniature Snap Action Switch
The DM1 Series sub-miniature snap-action switch is a compact, reliable switching component ideal for various automation and control applications. It features a SPDT contact configuration, with options for button, short lever, hook lever, or long lever actuators, allowing versatile installation. Designed to operate at 1A, 125V AC, it offers a durability of 10,000 cycles and high electrical resistance. Suitable for PCB mounting, the switch’s white actuator ensures visibility and ease of use in various electronic devices and control systems. Its small size makes it suitable for space-constrained applications requiring precise switching performance.
MULTICOMP-PRO DM100P1103 Sub-miniature Snap Action Switch Specifications:
- Switch Type: Sub-Miniature Snap-Action
- Contact Configuration: SPDT
- Switch Terminal: Straight PC Terminal
- Actuators: Button, Short Lever, Hook Lever, Long Lever
- Rating: 1A, 125V AC / 30mA, 5V DC
- Contact Resistance: 100m initial (max.)
- Insulation Resistance: 100MQ (min.) @ 500V DC
- Withstand Voltage: 500V AC/1 minute
- Electrical Life Cycle: 10,000 cycles (up to 500,000 cycles at 5V DC, 30mA)
- Mechanical Operating Frequency: 120/min.
- Electrical Operating Frequency: 10/min.
- Operating Force: 30 +15 grams (varies with actuator)
- Dimensions: Length approximately 6.5mm, other dimensions as per actuator type
- RoHS compliant
- Available with various actuators for diverse application needs
Buy the Multicomp Series DM1 Sub-miniature Snap Action Switch: DM100P1103
Order the Multicomp Series DM100P1103 sub-miniature snap-action switch online today to ensure high-quality, reliable switching in your electronic control systems. With a compact design, multiple actuator options, and a rated current of 1A at 125V AC, this switch offers durability with a life cycle of 10,000 cycles and high insulation resistance. Perfect for space-sensitive applications, it guarantees precise operation and dependable performance. Purchase now for quick delivery and enhance your automation and electronic projects with ease.
Buy Multicomp DM100P1103 now and experience unmatched reliability and performance in compact control switching solutions.
