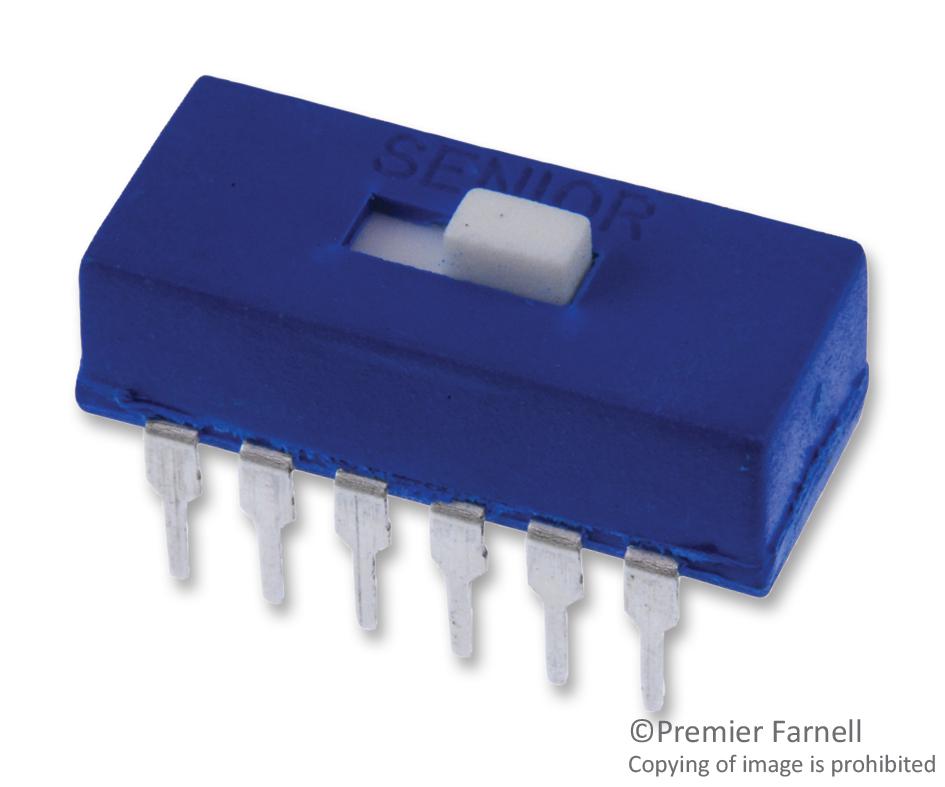

MULTICOMP-PRO SPC21205 Sealed Slide Switch
The SPC21205 is a four-pole double-throw sealed slide switch suitable for industrial use. Featuring phosphor bronze contacts and brass terminals, it is housed in a UL94V-0 rated PBT G30 enclosure with a UL94V-0 Valox 357 actuator. It supports a contact rating of 300mA at 125VAC, with a contact resistance of 20mΩ, insulation resistance of 100 megaohms at 500V DC, and dielectric strength of 500V RMS. It lasts for 15,000 cycles and operates from -40°C to 85°C, ideal for environments requiring water or solvent cleaning.
MULTICOMP-PRO SPC21205 Sealed Slide Switch Specifications:
- Contact Rating: 300mA @ 125 VAC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 100MO Min. @ 500V DC
- Dielectric Strength: 500 Vrms
- Mechanical Life: 15,000 Cycles
- Actuation Force: 400 +150 Grams
- Housing Material: PBT G30 UL94V-0
- Actuator Material: Valox 357 UL94V-0
- Contacts: Phosphor Bronze
- Terminals: Brass with Silver over Nickel contact plating and Tin over Nickel terminations
- Operating Temperature: -40°C to 85°C
- Dimensions: 5.80mm x 9.00mm x 4.40mm
Buy the Buy Multicomp SPC21205 Part Number SPC21205 Online
Order the Multicomp SPC21205 sealed slide switch online today and enjoy fast shipping. Its robust design ensures long-lasting durability for industrial and electronics projects. With a contact rating of 300mA at 125VAC, durable phosphor bronze contacts, and a UL94V-0 rated housing, this switch operates reliably across a temperature range of -40°C to 85°C. Perfect for water-resistant applications, it withstands 15,000 cycles of operation, making it an excellent choice for automation, control panels, and industrial equipment. Purchase now to enhance your project's reliability with proven switching performance.
Get Multicomp SPC21205 today—designed for reliability with sealed waterproof switch operation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SPC21205?
You can click on the BUY or RFQ button to purchase SPC21205 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SPC21205?
You can download the SPC21205 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SPC21205?
MULTICOMP-PRO
