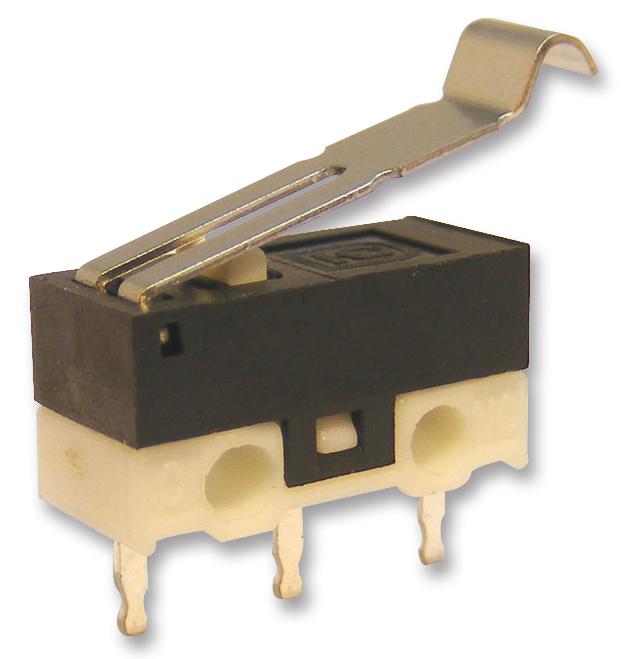

MULTICOMP PRO DM102P303 snap action microswitch
The DM1 series from Multicomp Pro features compact snap action microswitches with various actuator options including buttons, short, hook, and long levers. These SPDT switches handle up to 1A at 125V AC and have a contact resistance of 100 milliohms max. They operate reliably within a temperature range of -25°C to +65°C, making them ideal for industrial applications, automation systems, and power management. With a switch lifetime of 10,000 cycles, these switches offer durability, precision, and easy installation for controlling equipment efficiently.
MULTICOMP PRO DM102P303 snap action microswitch Specifications:
- Switch Type: Sub-Miniature Snap-Action
- Contact Configuration: SPDT
- Electrical Rating: 1A, 125V AC / 30mA, 5V DC
- Contact Resistance: 100 milliohms max
- Insulation Resistance: 100 MΩ min. @ 500V DC
- Withstand Voltage: 500V AC/1 minute
- Operating Temperature Range: -25°C to +65°C
- Maximum Mechanical Lifespan: 10,000 cycles
- Actuator Options: Button, Short Lever, Hook Lever, Long Lever
- Terminal Type: Straight PC Terminal
Buy the Buy Multicomp Pro Switch Part Number DM102P303 Online
Purchase the Multicomp Pro snap action microswitch DM102P303 online to ensure dependable operation in automation, industrial, and control systems. This compact switch offers high durability with a 10,000 cycle lifespan and handles current ratings up to 1A at 125V AC. Its versatile actuator options include buttons and levers, allowing customization for diverse applications. Easy to install with straight PC terminals, this switch is RoHS compliant and suitable for power management, automation, and process control environments. Order now to enhance your system's precision and reliability.
Get Multicomp Pro DM102P303 today—designed for industrial reliability and precise switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DM102P303?
You can click on the BUY or RFQ button to purchase DM102P303 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DM102P303?
You can download the DM102P303 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DM102P303?
MULTICOMP PRO
