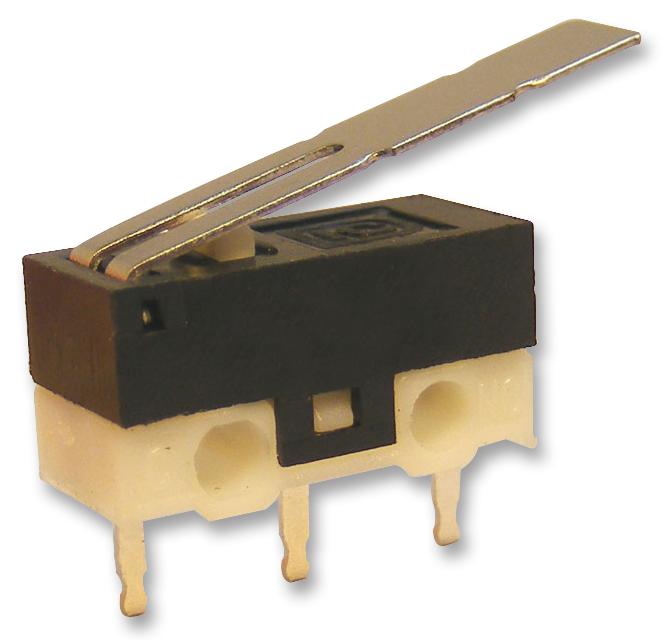

MULTICOMP PRO DM103P303 Sub-miniature Snap Switch
The DM1 Series is a range of sub-miniature snap-action switches designed for precise control in compact electronic applications. Featuring SPDT contact configuration with button, short lever, hook lever, or long lever actuators, these switches support electrical ratings up to 1A at 125V AC and 30mA at 5V DC, making them suitable for PCB mounting. They provide reliable operation with a mechanical life cycle of 10,000 cycles, contact resistance of 100mΩ max., and withstand voltages up to 500V AC. Their small size and versatile actuators make them ideal for space-constrained control and automation systems.
MULTICOMP PRO DM103P303 Sub-miniature Snap Switch Specifications:
- Switch Type: Sub-Miniature Snap-Action
- Contact Configuration: SPDT
- Switch Actuator: Button / Short Lever / Hook Lever / Long Lever
- Switch Terminal: Straight PC Terminal
- Button: White
- Rating: 1A at 125V AC / 30mA at 5V DC
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MQ min. @ 500V DC
- Withstand Voltage: 500V AC for 1 minute
- Mechanical Lifespan: 10,000 cycles
- Electrical Operating Frequency: 10/min.
- Mechanical Operating Frequency: 120/min.
- Operating Force: 30 ±15gf (varies with actuator)
- Dimensions: Approximately 6.5mm x 14.2mm x 3.6mm (varies by actuator)
Buy the Buy Multicomp Pro Sub-miniature Snap Action Part Number DM1-03P-30-3 Online
Enhance your electronic control system with the reliable and compact DM1 Series snap-action switch. Featuring multiple actuator options and rated for 1A at 125V AC, these switches are perfect for space-constrained projects requiring precise activation. Their durable design supports 10,000 cycles, with excellent insulation and contact resistance properties. Easily mountable with straight PC terminals, these versatile switches are ideal for automation, instrumentation, and control panels, ensuring dependable operation in a variety of professional applications. Purchase online now for fast delivery and quality assurance.
Order your Multicomp Pro DM1-03P-30-3 sub-miniature snap-action switch today and ensure reliable control in your compact electronic projects.
