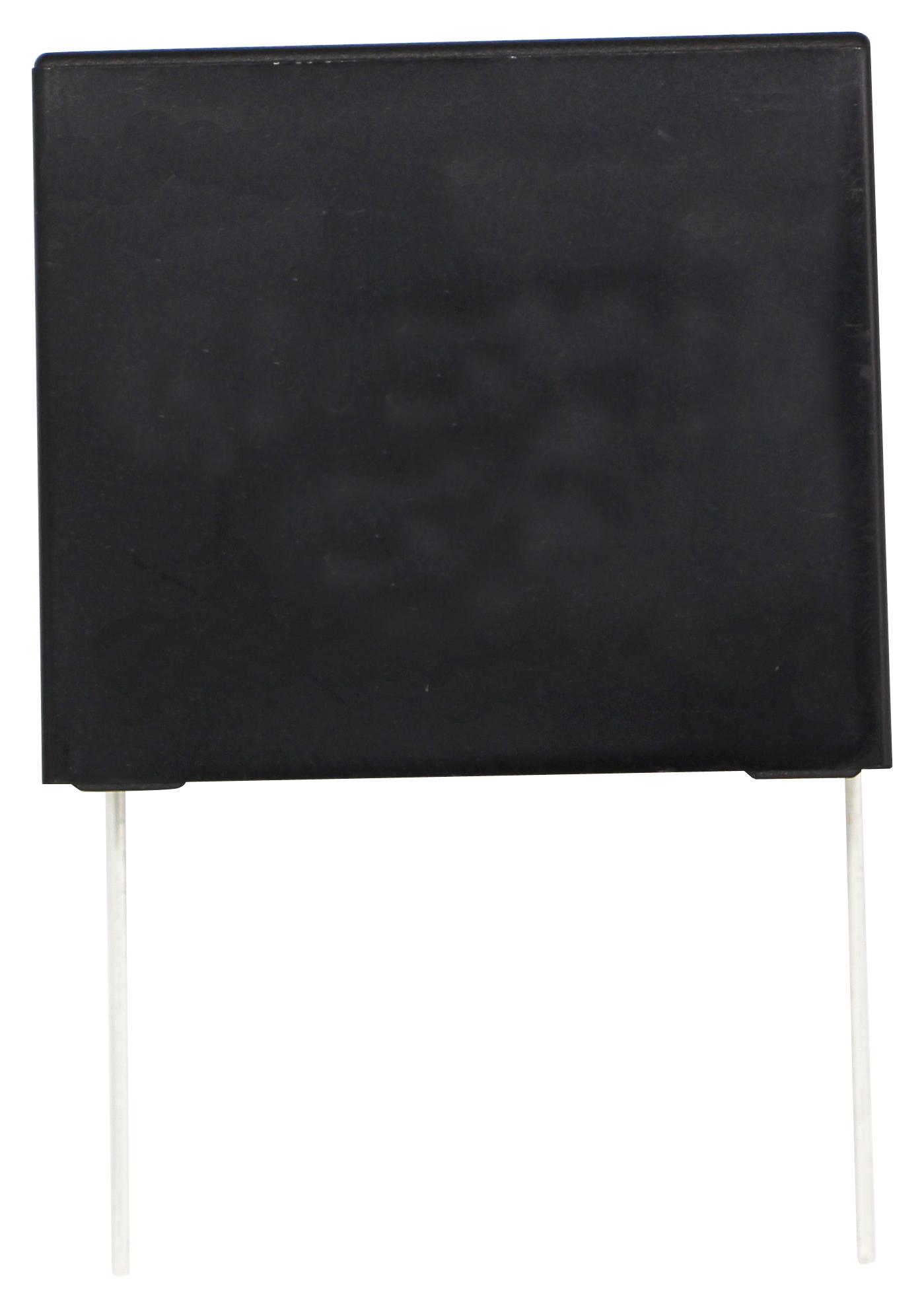

MULTICOMP PRO MPAPK3A5A10K0Q200 AC Filter Capacitor
The AC output filter film capacitor is designed for small power filtering applications such as UPS systems and solar inverter LCL filters. Made with metallized polypropylene film, it features self-healing properties, high insulation resistance, and withstands operating temperatures from -40°C to +105°C. Rated for 350V or 440V AC RMS, with maximum DC voltage of 600V. It offers capacitance values from 0.68uF to 15uF with ±10% tolerance, high reliability, and a compact radial leaded form suitable for industrial filtering needs.
MULTICOMP PRO MPAPK3A5A10K0Q200 AC Filter Capacitor Specifications:
- Climatic Category 1 40/85/21
- Operating Temperature Range: -40°C to +105°C
- Rated RMS Voltage: 350V AC and 440V AC
- Rated AC Voltage: 450V AC
- Max continuous DC Voltage: 600V DC
- Capacitance Range: 0.68 uF to 15 uF
- Capacitance Tolerance: ±10%
- Voltage Proof: 1.5UN (10s) between terminals, 3000V AC (60s) to case
- Insulation Resistance: 2,3000s at 20°C, 100V DC, 1 min
- Dissipation Factor: 15×10^-4 at 1kHz, 20°C
- Dimensions (W x H x T): 41.5 x 45 x 30 mm
- Lead Diameter: 1.2 mm
- Material: Metallized polypropylene film
- Climatic Category: 40/85/21
- Temperature Range: -40°C to +105°C
Buy the AC Output Filter Series multicomp PRO: MPAPK3A5A10K0Q200
Enhance your power filtering system with the high-quality AC filter capacitor from the multicomp PRO series. Designed for small power AC output filtering like UPS and solar inverters, it features metallized polypropylene film construction for durability and self-healing properties. Rated up to 440V AC and capable of withstanding temperatures from -40°C to +105°C, its compact radial leaded design ensures easy installation. Reliable, high-performance, and suitable for various industrial filtering needs, this capacitor guarantees efficient power stability and noise reduction.
Buy multicomp PRO MPAPK3A5A10K0Q200 now and experience high performance and reliability in AC output filtering applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPAPK3A5A10K0Q200?
You can click on the BUY or RFQ button to purchase MPAPK3A5A10K0Q200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPAPK3A5A10K0Q200?
You can download the MPAPK3A5A10K0Q200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPAPK3A5A10K0Q200?
MULTICOMP PRO
