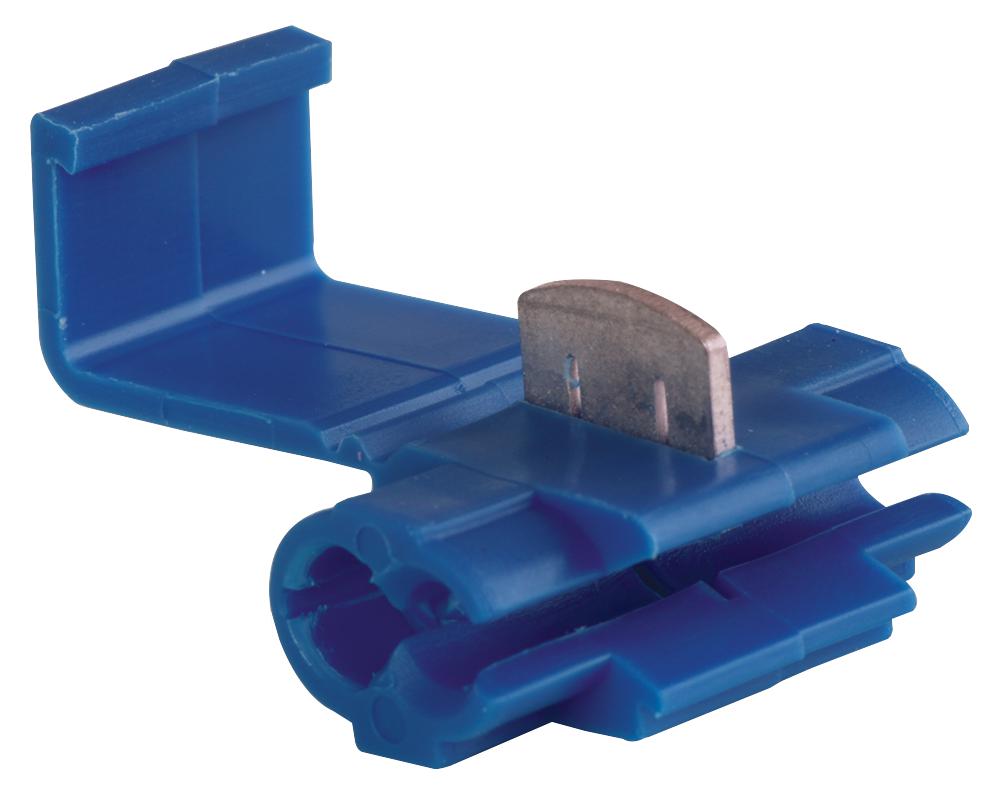

MULTICOMP PRO DS2 Wire Splice Connector
The DS series Tap Splice is designed for quick and reliable wire splicing without cutting or stripping. It is placed over an existing wire, an additional wire is inserted, and the connector is crimped with pliers to establish a secure connection. A 6.3mm push-on blade can then be inserted into the female socket for additional connectivity. Suitable for splicing or as a break-in test lead, this splice offers easy installation and excellent electrical performance. Rated for 600V voltage and 105°C temperature, it is compatible with wiring up to these specifications. Multicomp Pro products, including this tap splice, are highly rated for quality and reliability, with 96% customer recommendation and a 12-month limited warranty.
MULTICOMP PRO DS2 Wire Splice Connector Specifications:
- Maximum Electric Current: AWG 22 3 AMP, AWG 20 4 AMP, AWG 18 7 AMP, AWG 16 17 AMP, AWG 14 30 AMP
- Voltage Rating: 600V Max.
- Temperature Rating: 105°C
- Insulation Material: PP
- Terminal Material: Brass
- Surface Treatment: Tin Plated
- Insulation Colour: Red, Light Blue
- Wire Range: 22-18AWG (0.5-0.75mm²), 18-14AWG (0.75-2.5mm²)
- Terminal Thickness: 0.8mm
Buy the Multicomp Pro DS2 – Reliable Wire Splice for Industrial Applications
Purchase the Multicomp Pro DS2 wire splice online today for secure, efficient electrical wiring. Designed to handle up to 600V and maintain temperature ratings of 105°C, this splice ensures dependable performance for industrial wiring projects. Its easy-to-use crimping method, compatible with pliers, allows quick installation without wire cutting or stripping. Suitable for splicing or testing, this connector boasts high-quality materials like brass terminals with tin plating for durability and optimal conductivity. Order now and benefit from fast delivery, trusted reliability, and excellent customer support for all your electrical needs.
Get Multicomp Pro DS2 today—designed for quick, reliable wiring connections with high electrical performance and easy plier installation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DS2?
You can click on the BUY or RFQ button to purchase DS2 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DS2?
You can download the DS2 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DS2?
MULTICOMP PRO
