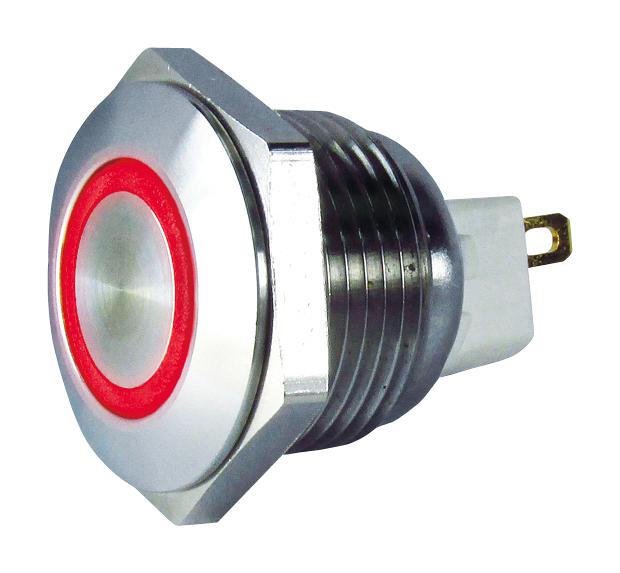

MULTICOMP PRO MC010892 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for durable indoor and outdoor applications, featuring three top types: flush, prominent, and domed. Made with stainless steel, it has gold-plated contacts, operates at 48V DC with a current greater than 100mA, and includes LED indicators in green, red, or blue. It supports a panel cut-out diameter of 16mm and a panel thickness of 0.5 to 3mm. The switch boasts a dielectric strength of 2,000V AC, an insulation resistance of 100MQ, and a mechanical life of 250,000 cycles, making it suitable for harsh environments.
MULTICOMP PRO MC010892 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2,000V AC / min between live and ground, 1,000V AC / min between terminals
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, 0.5mm amplitude
- Shock Resistance: 200 m/S? operating, 500 m/S? damage limit
- Mechanical Life: 1,000,000 momentary, 250,000 maintained cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
- Panel Cut-out: 16mm diameter
- Panel Thickness: 0.5~3mm
Buy the Buy multicomp Illuminated Vandal Resistant Switch Part Number MC010892 Online
Order the multicomp vandal resistant illuminated switch online today for durable, reliable operation in demanding environments. Featuring stainless steel construction, multiple top types, LED indicators, and IP67 protection, this switch ensures long-lasting performance. It supports a 48V DC rating with high durability, suitable for outdoor and industrial use. Equipped with gold-plated contacts, high dielectric strength, and excellent vibration and shock resistance, this switch is ideal for safety, security, and control applications requiring robust vandal resistance and durability.
Get multicomp MC010892 today—built for durability and reliable indoor/outdoor vandal resistant switching solutions.
