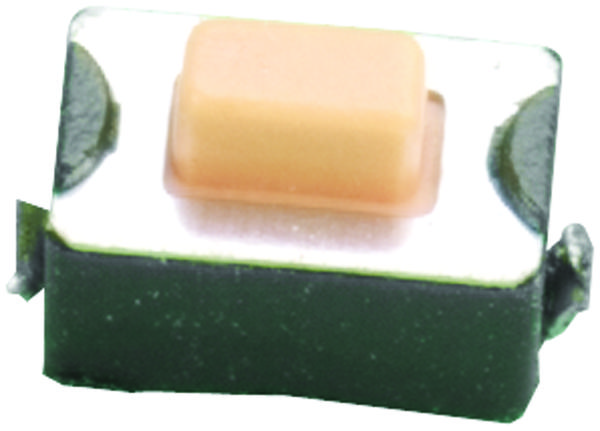

MULTICOMP PRO DTSM32SB Tactile Switch
The DTSM-32S-B from Multicomp Pro is a surface mount tactile switch featuring a compact ultraminiature design suitable for high-density mounting. It has a Single Pole Single Throw Normally Open contact configuration with a contact rating of 50mA at 12V DC. The switch operates effectively within a temperature range of -25°C to +70°C and requires an operating force of 320gf. Its size is approximately 3.5mm by 6mm. The switch provides a sharp click feel with positive tactile feedback, making it ideal for industrial, power management, automation, and process control applications.
MULTICOMP PRO DTSM32SB Tactile Switch Specifications:
- Size: 3.5mm x 6mm
- Contact Rating: 50mA at 12V DC
- Contact Configuration: SPST Normally Open
- Operating Force: 320gf
- Operation Temperature Range: -25°C to +70°C
- Contact Material: Silver cladding
- Material: Nylon or PPA high temperature thermoplastic
- Vibration Resistance: MIL-STD-202F method 201A, 10-55-10 Hz/1 min, 3 directions, 2 hours each
- Shock Resistance: MIL-STD-202F method 213B, 50G peak, 6 sides, 3 times each
- Electrical Life: 50,000 cycles
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min at 500V DC
- Dielectric Strength: 250V AC for 1 min
- Soldering Methods: Hand, reflow, wave soldering with specific temperature profiles
Buy the Buy Multicomp Tact Switch Part Number DTSM32SB Online
Enhance your electronic assemblies with the reliable Multicomp Pro tactile switch. Designed for high-density mounting, it delivers a sharp click feel and operates within -25°C to +70°C. Its compact size of 3.5mm by 6mm makes it ideal for industrial automation, power management, and process control applications. With a contact rating of 50mA at 12V DC, it ensures dependable performance and long-lasting durability. Order online now to secure quick delivery and trusted quality for your critical projects.
Order your Multicomp Tact Switch DTSM-32S-B today and enjoy reliable tactile feedback for industrial, automation, and power management projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DTSM32SB?
You can click on the BUY or RFQ button to purchase DTSM32SB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DTSM32SB?
You can download the DTSM32SB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DTSM32SB?
MULTICOMP PRO
