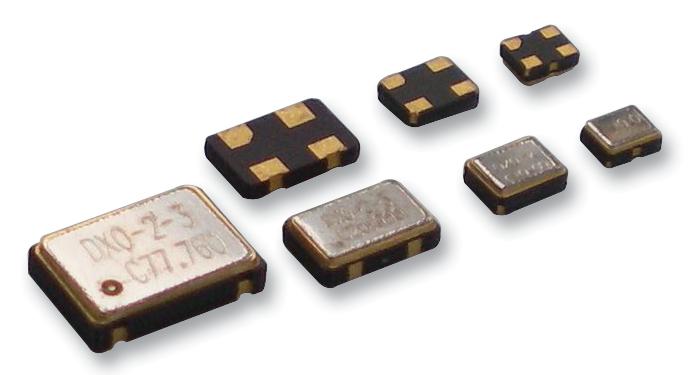

MULTICOMP PRO DXO575050T33TS SMD Clock Oscillator
The SMD Clock Oscillator from the DXO57 Series by multicomp®pro offers a compact, ultra-thin ceramic package designed for microprocessor timing applications. Operating with a supply voltage of 3.3V or 5V and frequency ranges from 1.5MHz to 80MHz with ±50ppm tolerance options, it ensures precise and stable clock signals. Features include HCMOS/TTL output, tri-state functionality, and low power consumption. Its dimensions are 5x7mm, making it ideal for space-constrained electronic designs requiring reliable timing components with excellent stability and performance across various temperatures.
MULTICOMP PRO DXO575050T33TS SMD Clock Oscillator Specifications:
- Frequency Range: 1.5MHz to 80MHz
- Tolerance: ±50ppm (Options: +25ppm, +100ppm)
- Supply Voltage: 3.3V or 5V ±10%
- Operating Temperature: 0°C to +70°C
- Storage Temperature: -40°C to +85°C
- Current Consumption: 25mA at 3.3V, 40mA at 5V
- Output Waveform: HCMOS/TTL
- Output Load: 15pF HCMOS or 10TTL
- Output Level ‘L’: max 10% Vop
- Output Level ‘H’: min 90% Vop
- Rise/Fall Time (10%-90% Vop): max 10ms
- Dimensions: 5 x 7 mm
- Package: Ultra-thin ceramic surface-mount package
Buy the multicomp®pro Series DXO57 SMD Clock Oscillator: DXO575050T33TS
Purchase the high-performance SMD clock oscillator from multicomp®pro online today. Compact and reliable, it features a 5x7mm ceramic package, 3.3V or 5V operation, and frequencies up to 80MHz. Designed for microprocessor timing with stable HCMOS/TTL output and tri-state functionality, it ensures accurate, low-noise clock signals. Its small size and low power consumption make it ideal for modern electronics. Order now to enhance your project with a durable, precise oscillator optimized for space-constrained applications and professional-grade performance.
Get multicomp®pro DXO575050T33TS today—built for precise timing and long-lasting durability in compact electronic devices.
