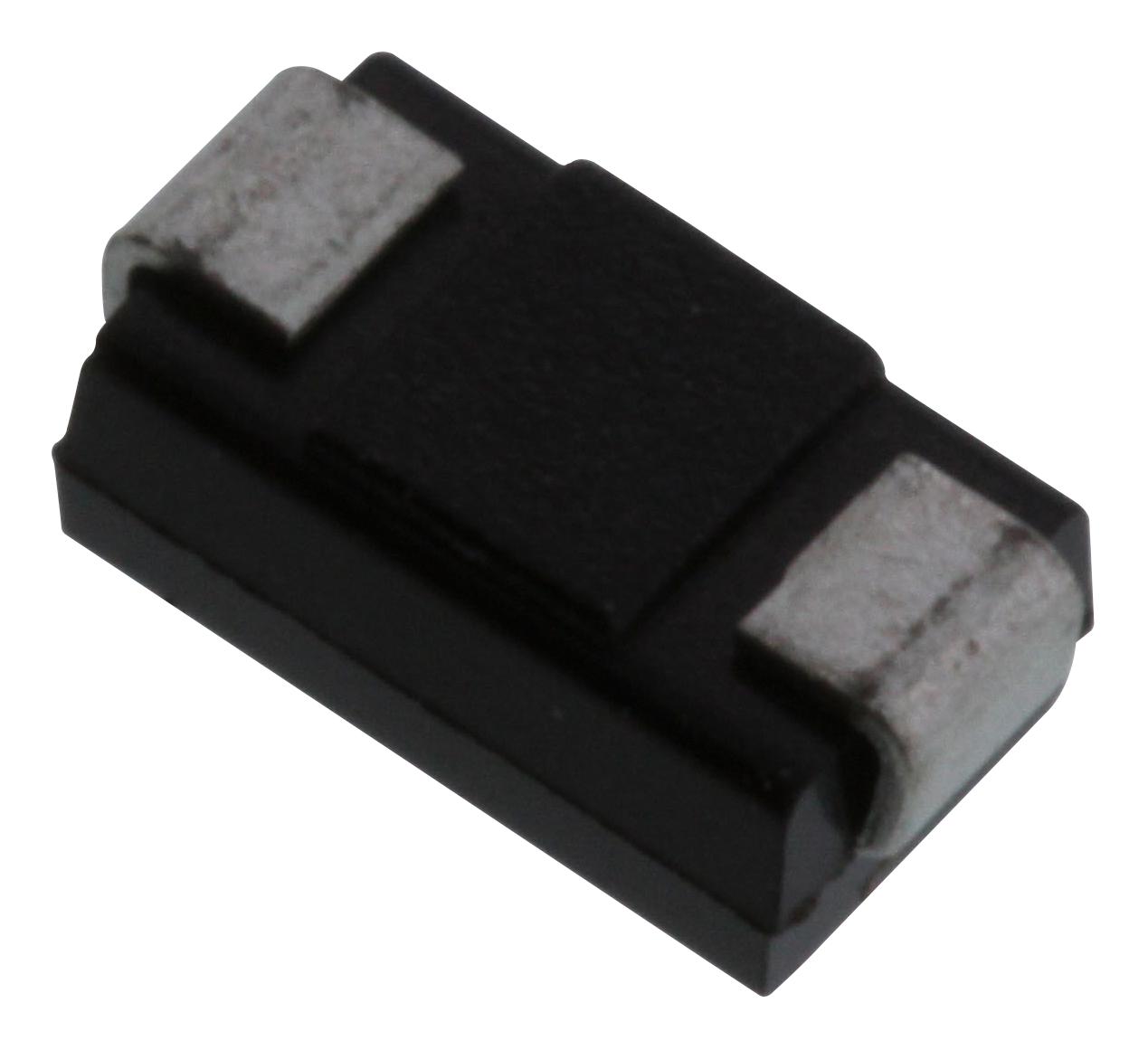

MULTICOMP-PRO HTA5L45 Schottky Barrier Rectifier
This high-performance Schottky Barrier Rectifier with trench technology offers low forward voltage drop, high surge capacity, and high current capability. Designed for surface-mounted applications, it features a plastic UL 94V-0 package suitable for low voltage, high-frequency inverters, power supplies, and switching circuits. Rated at 25°C, it withstands currents up to 5A, with a peak surge current of 30A and reverse voltage of 45V. Its compact size and thermal characteristics make it ideal for efficient, reliable power management in various electronic applications.
MULTICOMP-PRO HTA5L45 Schottky Barrier Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 45V
- Maximum RMS Voltage: 31V
- Maximum DC Blocking Voltage: 45V
- Maximum Average Forward Rectified Current: 5A
- Peak Forward Surge Current (8.3ms): 30A
- Operating Temperature Range: -55°C to +150°C
- Maximum Reverse Current at 25°C: 300 pA
- Maximum Junction Capacitance: 484 pF
- Thermal Resistance Per Diode: 25°C/W
- Package: Molded plastic, surface-mounted, UL 94V-0 rating
- Dimensions: Length 0.305 inches (7.75 mm), Width 0.152 inches (3.86 mm), Height 0.076 inches (1.93 mm)
Buy the Buy multicomp Schottky Barrier Rectifier Part Number HTA5L45 Online
When purchasing the multicomp HTA5L45 Schottky Barrier Rectifier online, you gain access to a high-quality, efficient power component designed for low voltage, high-frequency applications. It features a compact surface-mount design, excellent surge capacity, and a low forward voltage drop, ensuring optimal performance in power supplies, inverters, and switching circuits. Fast delivery and trusted suppliers make it easy to incorporate this reliable rectifier into your electronic projects, enhancing both efficiency and durability.
Buy multicomp HTA5L45 Schottky Barrier Rectifier now and enjoy high surge capacity, low forward voltage, and reliable switching performance for demanding power circuits.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO HTA5L45?
You can click on the BUY or RFQ button to purchase HTA5L45 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part HTA5L45?
You can download the HTA5L45 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of HTA5L45?
MULTICOMP-PRO
