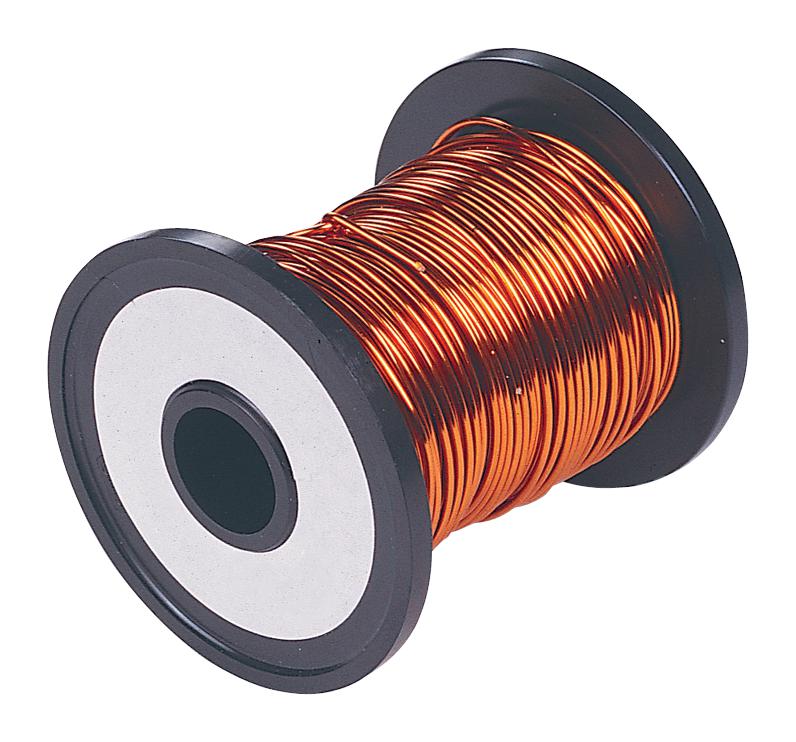

MULTICOMP PRO ECW04 Enamelled Copper Wire
This enamelled copper wire is designed for efficient electrical applications, including small motors, transformers, relays, and magnet coils. It features high-quality annealed copper conductors with Polyurethane insulation coating capable of withstanding thermal stresses up to 218°C. The wire complies with IEC standards IEC 60317-0-1:2014 and IEC 60317-51, ensuring safety and reliability. Suitable for automated soldering equipment, it offers excellent flexibility, adherence, and resistance to abrasion, solvents, and refrigerants. Available in various gauges, it provides optimal electrical performance and durability for industrial applications.
MULTICOMP PRO ECW04 Enamelled Copper Wire Specifications:
- Material: Copper, Polyurethane insulation
- Conductivity: Annealed copper
- Insulation Coating: Polyurethane 180
- Mechanical Properties (for 0.3mm): Elongation >30%, Springiness <50, Adhesion: Excellent, Resistance to Abrasion: >67.75N
- Electrical Properties: Breakdown Voltage 7kV
- Thermal Properties: Temperature Index 2180°C, Cut through 230°C, Heat Shock 200°C for 2 min
- Chemical Properties: Solvent Resistance, Solderability, Resistance to Refrigerants
- Dimensions: Conductor diameters from 0.07mm to 1.6mm, gauges ranging from 20SWG to 16SWG
- Physical Properties: Specific weight ~8.89 Gr/cm³, Resistivity @20°C 0.017241 Ω·mm²/m
- Physical Size Tolerance: Varies per gauge, e.g., ECW0.2 has diameter 0.03142mm, ECW1.5 has diameter 1.767mm
- Certifications: IEC 60317-0-1:2014, IEC 60317-51, NEMA MW 82-C
Buy the Buy multicomp Copper Enamelled Wire Part Number ECW04 Online
Order multicomp ECW04 enamelled copper wire online now for your electrical and industrial needs. Designed for small motors, transformers, relays, and magnet coils, this high-quality wire features a polyurethane insulation coating capable of withstanding high temperatures and mechanical stresses. Suitable for automated soldering equipment, it offers excellent flexibility, adherence, and resistance to abrasion, solvents, and refrigerants. Available in various gauges, it ensures optimal electrical conductivity and durability. Purchase today for fast delivery and consistent performance in your manufacturing or repair projects.
Get multicomp ECW04 today—crafted for high thermal resistance and reliable electrical performance in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ECW04?
You can click on the BUY or RFQ button to purchase ECW04 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ECW04?
You can download the ECW04 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ECW04?
MULTICOMP PRO
